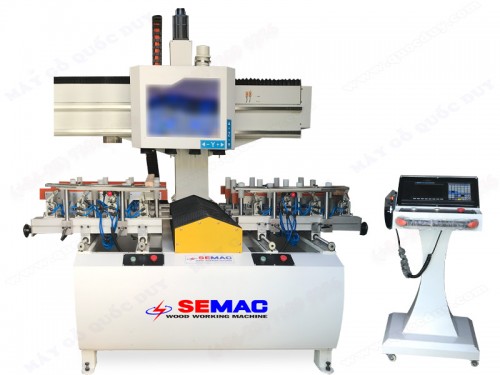

4-HEAD NUMERICAL CONTROL MORTISER MACHINE
4-HEAD NUMERICAL CONTROL MORTISER MACHINE
Model: SMJH-1500-4A
| Specifications | |
|
Max. working length
|
: 1500 mm
|
|
Max. working width
|
: 130 mm
|
|
Max. drilling depth
|
: 100 mm
|
|
Workpiece clamping system
|
: 3 x 4
|
|
Tool handle diameter
|
: 12.7 mm
|
|
Spindle speed
|
: 18000 rpm
|
|
Spindle power
|
: 2.2 kw
|
|
Total power
|
: 11.7 kw
|
|
Working table size
|
: 1500 x 6300 mm
|
|
Voltage
|
: 380 V / 50Hz / 3 phase
|
|
Machine size
|
: 2200 x 1900 x 2300 mm
|
|
Net weight
|
: 1500 kg
|
