AUTOMATIC 2-HEAD MILLING DRILLING CUTTING MACHINE
AUTOMATIC 2-HEAD MILLING DRILLING CUTTING MACHINE
- :SM-2400 2CDR
- :Semac - Quốc Duy
- :12 tháng
- :Call
- :
 |  |

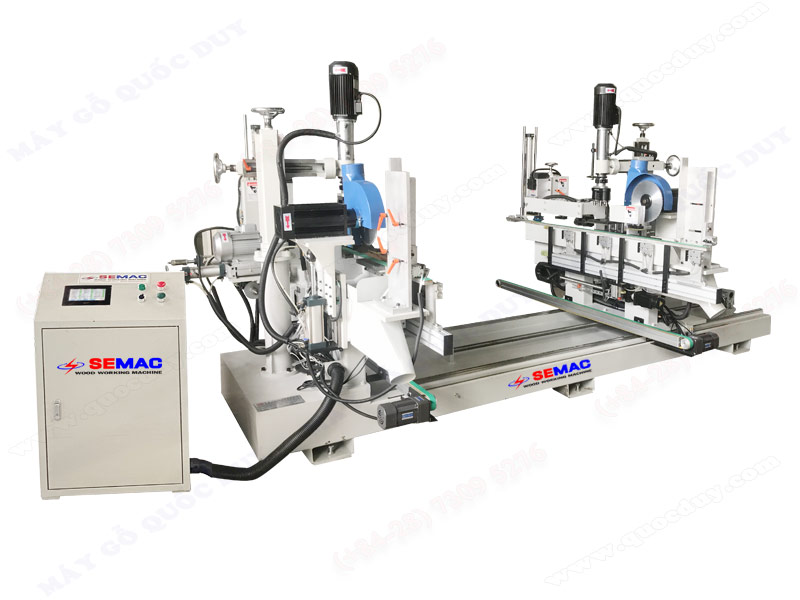

AUTOMATIC 2-HEAD MILLING DRILLING CUTTING MACHINE
Model : SM 2400 2CDR
|
Specifications
|
|
|
Max workpiece length
|
: 2400 mm
|
|
Min workpiece length
|
: 250 mm
|
|
Max workpiece thickness
|
: 40 mm
|
|
Max workpiece width
|
: 150 mm
|
|
Left cutting motor
|
: 2.2 kw
|
|
Right cutting motor
|
: 2.2 kw
|
|
Left vertical drill motor
|
: 1.5 kw
|
|
Right vertical drill motor
|
: 1.5 kw
|
|
Left horizontal drill motor
|
: 1.5 kw
|
|
Right horizontal drill motor
|
: 1.5 kw
|
|
Left milling motor
|
: 2.2 kw
|
|
Right milling motor
|
: 2.2 kw
|
|
Servo motor feeds the workpiece (L)
|
: 0.75 kw
|
|
Servo motor feeds the workpiece R
|
: 0.75 kw
|
|
The motor returns the workpiece (L)
|
: 900 w
|
|
The motor returns the workpiece R
|
: 900 w
|
|
Length adjustment motor
|
: 0.37 kw
|
|
Machine size
|
: 3900 x 2100 x 2100 mm
|
| VIDEO | |
