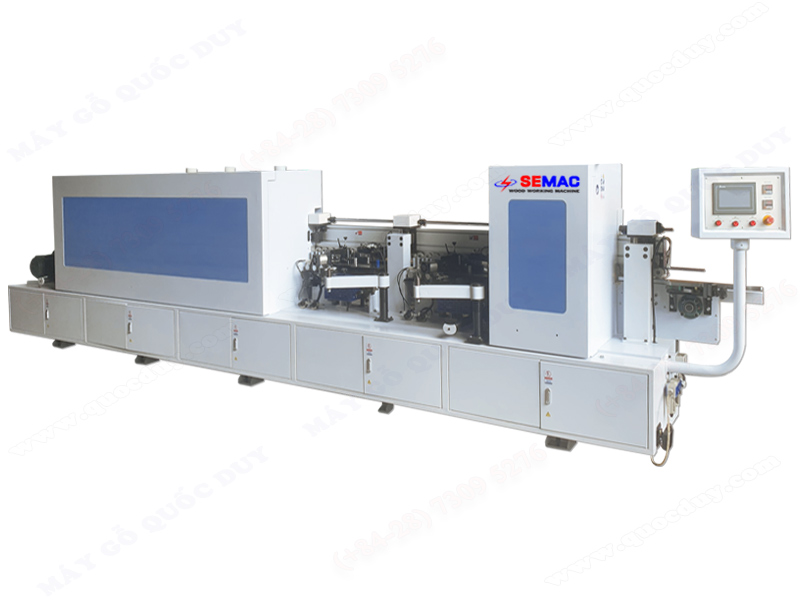

AUTOMATIC EDGE BANDING MACHINE
AUTOMATIC EDGE BANDING MACHINE
Model: MICHAEL 4
|
Specification
|
|
|
Max edge height
|
60 mm
|
|
Panel thickness
|
10-60 mm
|
|
Working speed
|
12-20 m/min
|
|
Edge banding tape thickness
|
0.4-3 mm
|
|
Gluing motor power
|
0.75 kw x 2
|
|
Heating power
|
1.5 kw x 2
|
|
Ending trimming motor power
|
0.37 kw x 2
|
|
Fine trimming motor power
|
0.75kw x 4
|
|
Buffing motor power
|
0.37 kw x 2
|
|
Belt motor power
|
2.2 kw
|
|
Panel width
|
80 mm
|
|
Working air pressure
|
0.6 - 0.8 Mpa
|
|
Machine size
|
7700 x 1000 x 1700 mm
|
|
Weight
|
1900 kg
|
