AUTOMATIC EDGE BANDING MACHINE

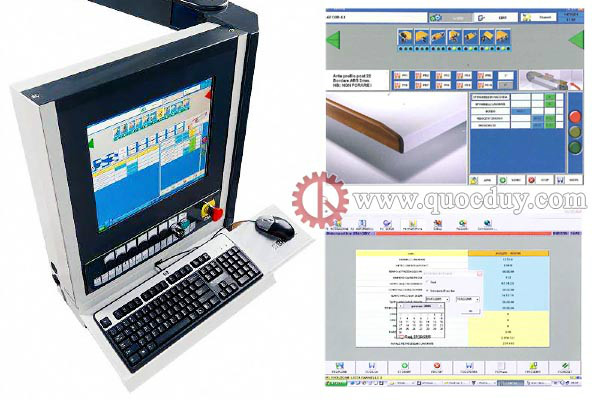

Roxyl is a line of automatic edge banding machine designed to satisfy different needs of edge application in coil, strips, solid wood and the use of any glue type. It combines efficiency and productivity thanks to the most advanced hardware and software control systems.
- :ROXYL
- :Italy
- :12 months
- :Call
- :
 |  |
AUTOMATIC EDGE BANDING MACHINE
Model: ROXYL
|
Specifications
|
|
|
Panel thickness
|
: 10 – 60 mm
|
|
Thickness of banding material in rolls
|
: 0.4 – 3 mm
|
|
Thickness of banding material in strips
|
: 0.4 – 8 mm
|
|
Min. panel length
|
: 140 mm
|
|
Min. panel width ( with length as least 140 mm )
|
: 85 mm
|
|
Min. panel width ( with length as least 250 mm )
|
: 50 mm
|
|
Chain feed speed
|
: 12m/min
|
|
Chain feed speed (option )
|
: 25 m/min
|
|
Heating time at ½ load
|
: 10min
|
|
Glue pot capacity ( appox)
|
: 3kg
|
