AUTOMATIC FEEDING AND PROCESSING CENTER

  • :SSM-1800H
  • :Semac-Quoc Duy
  • :Call
  • :

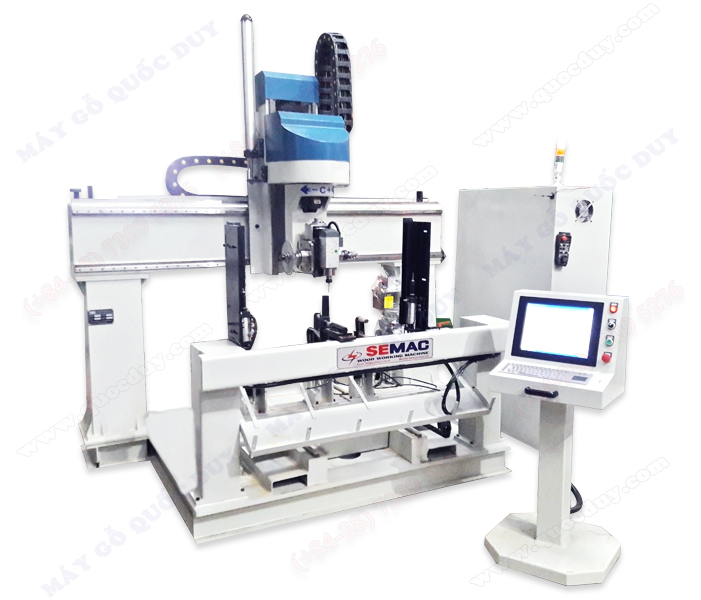

AUTOMATIC FEEDING AND PROCESSING CENTER

Model: SSM1200-H

may-phay-mong-cnc-5-truc-ssm-1200-h1
Specifications
Number of motion axes
:5 axes
Max. Working thickness
:180 mm
Max. Working width
:180 mm
Max. Working length
:1800 mm
Max. Length product
:1800 mm
Axis travel X
:2600 mm, 60 m/min
Axis travel Y
:600 mm, 35 m/min
Axis travel Z
:750 mm, 35 m/min
Axis travel A
:0-360, 35 m/min
Axis travel C
:0-360, 35 m/min
Spindle power 1
:7.5 Kw
Spindle power 2
:1.5 Kw
X-axis servo
:1 Kw
Y-axis servo
:0.75 Kw
Z-axis servo
:1 Kw
A-axis servo
: 0.75 Kw
C-axis servo
: 0.75 Kw
Spindle speed
:18000R/Min
Tenon processing size
:unlimited
Rorking presure
:6kg
Voltage
:380V
Saw blade
:1
Square hole drill
:1
Number of milling cutters
:1
Machine size
:3500*2500*2400mm
