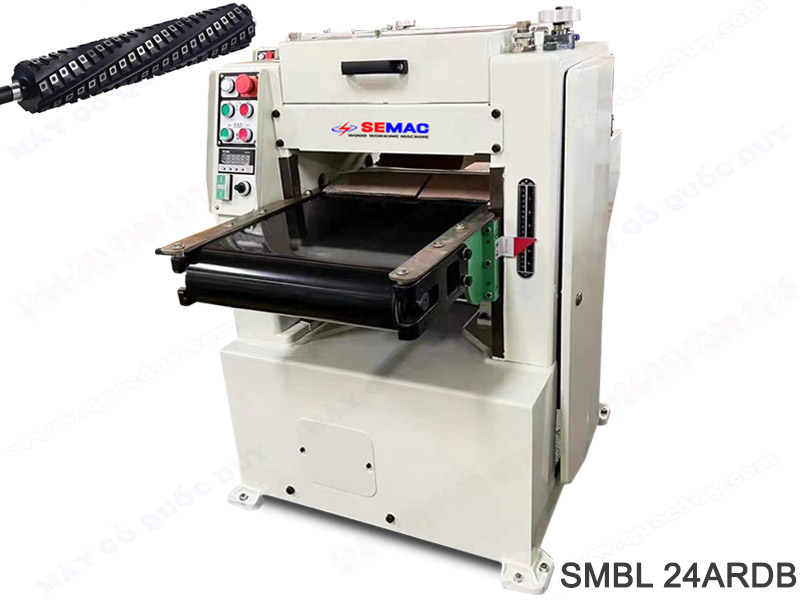

AUTOMATIC PLANER MACHINE 600MM
Model: SMBL 24ARDB
| Features | |
|
- High-speed processing stable PVC billet conveyor belt
- Twist planer for enhanced planing efficiency improves product quality
- Robust body, high stability and low noise,
- Machining thickness up to 160 mm
|
|
|
Specifications
|
|
|
Tool shaft motor power
|
: 7.5 kW
|
|
Feed motor power
|
: 1.5 kW
|
|
Lift motor power
|
: 0.37 kW
|
|
Total motor capacity
|
: 9.37 kW
|
|
Spindle speed
|
: 5200 r/min
|
|
Feed speed
|
: 0 – 20 m/min
|
|
Knife shaft outer diameter
|
: F 100 mm
|
|
Max. cutting volume
|
: 5 mm
|
|
Max. working width
|
: 630 mm
|
|
Min. woking width
|
: 5 mm
|
|
Max. working thickness
|
: 160 mm
|
|
Min. working thickness
|
: 5 mm
|
|
Extracorporeal diameter
|
: F 100 mm
|
|
Net weight
|
: 735 kg
|
|
Machine size
|
: 1500 x 1150 x 1200 mm
|
