AUTOMATIC RIPSAW SERIES SINGLE LONGITUDINAL SAWING MACHINE
AUTOMATIC RIPSAW SERIES SINGLE LONGITUDINAL SAWING MACHINE

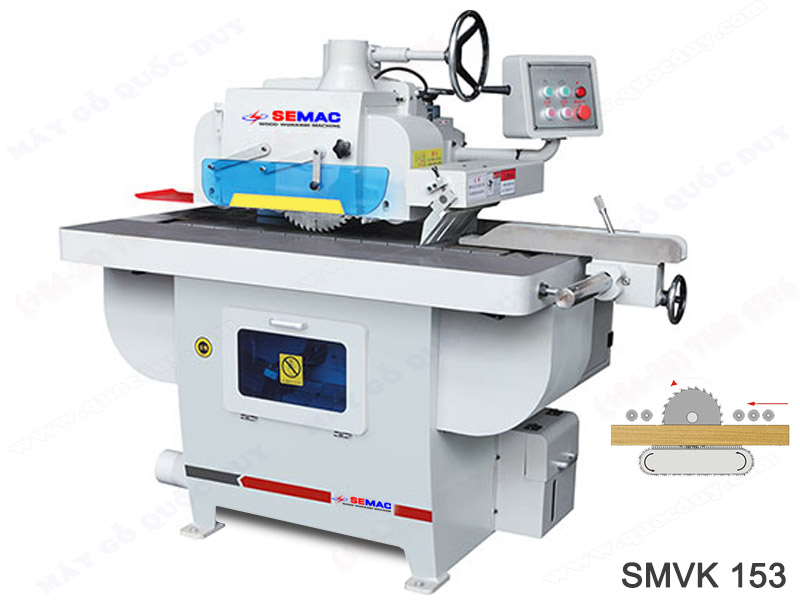

Model: SMVK 153
| Feature | |
|
- Specialized in using straight edges, cutting with standard size applied for the production lin of bar plywood, interior and exterior production. - The frame is very solidly constructed so that the motors operate very stably and do not shake to affect the product during the wood-burning process. |
|
| Specifications | |
|
Sawing thickness
|
: 5-85mm
|
|
Max. Sawing width
|
: 360 mm
|
|
Min. Sawing length
|
: 300 mm
|
|
Max saw blade diameter
|
: Ø 305 mm
|
|
Saw shaft speed
|
: Ø 25.4 mm
|
|
Main motor power
|
: 7.5 kw
|
|
Feed motor power
|
: 0.75 kw
|
|
Total power
|
: 8.25 kw
|
|
Net weight
|
: 900 kg
|
|
Machine size
|
: 1550 x 950 x 1420 mm
|
