AUTOMATIC SINGLE-SIDED EDGEBANDING MACHINES

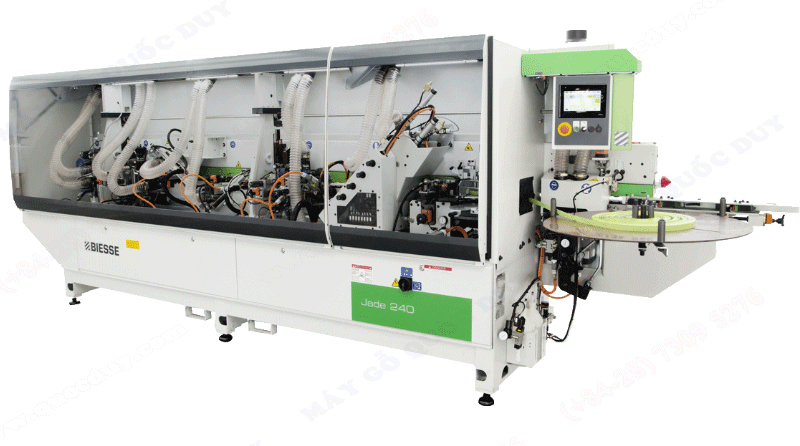

Model: JADE 225/ JADE 240

may-dan-canh-thang-tu-dong-JADE-200



Feature
JADE 225
chuc-nang-jade-225-E

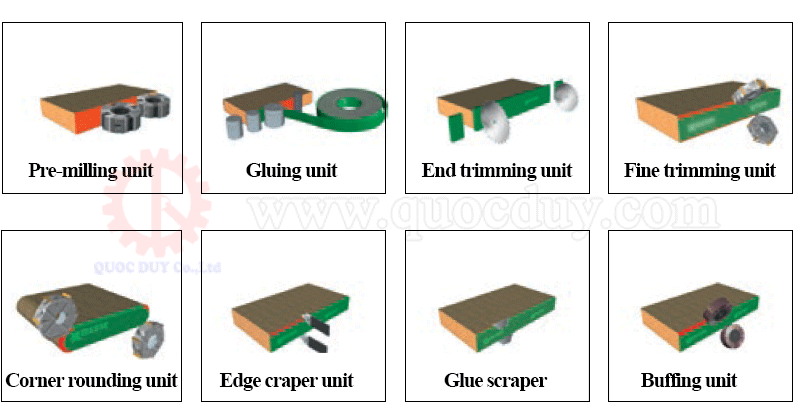

JADE 240
chuc-nang-jade-240-E
Structure

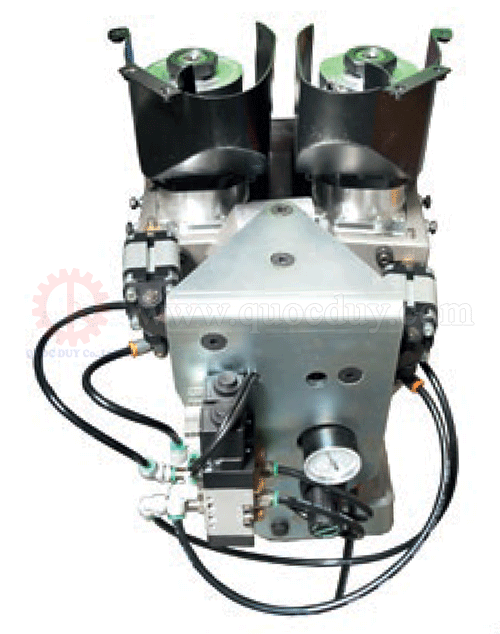

Pre-milling unit is equipped with 2 timed intervention motors to guarantee a perfect finish. The auto-set device ensures optimum ositioning of the milling tool according to the thickness of the panel being machined bo-phan-phay-canh-jade-200
bo-phan-dan-va-kiem-soat-keo-jade-200

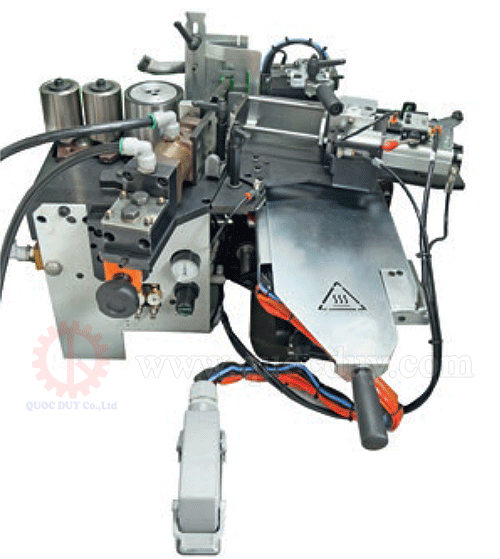

Optimum gluing thanks to differential temperature control between the glue pot and the glue spreading roller. An automatic stand-by device avoids glue over heating during temporary non-use of the machine.

Quick, easy maintenance thanks to the teflon inner coating. Automatic cutting device for 3 mm edges

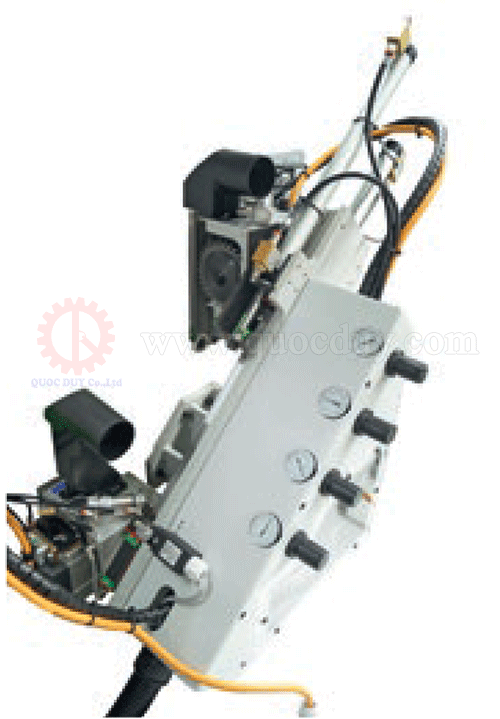

End Trimming unit removes excess edging tape at the front and rear of the panel with the 2 high frequency motors ensuring reliability and cutting accuracy. The end trimming unit can be tilted (0-15 degrees) automatically from the control panel bo-phan-xen-dau-duoi-jade-200

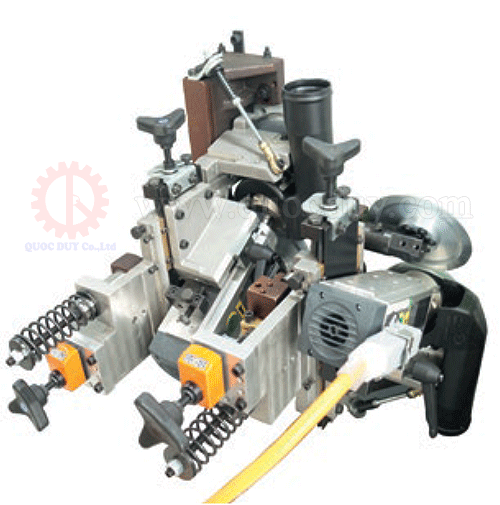

bo-phan-xen-tren-duoi-jade-200 Fine trimming unit trims the top and bottom of the edges, with the 2 high-frequency motors and rotating vertical/horizontal disc copiers

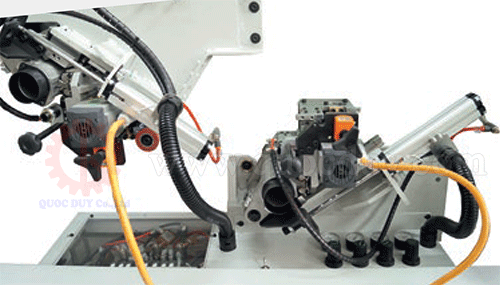

The Corner rounding unit with two motors applies the radius not only on the front and rear edges but also on the upper and lower parts of the panel bo-phan-bo-goc-jade-200

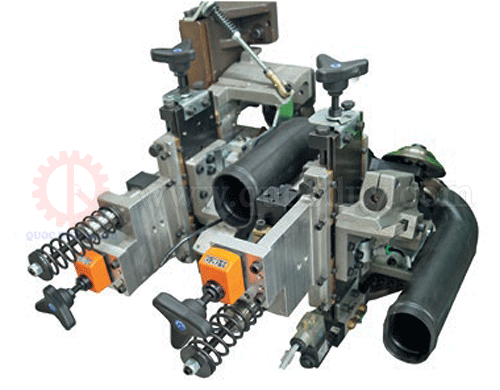

bo-phan-cao-chi-jade-200 The Edge scraper eliminates imperfections resulting from previous machining operations on the top and bottom of the edge

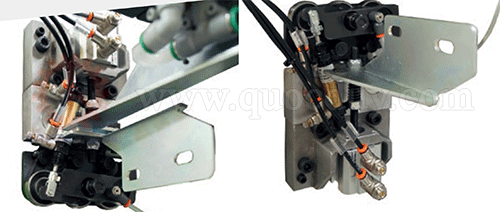

The Glue Scraper removes excess glue from the top and underside of the panel. This is the only model on the market fitted with 4 pneumatic cylinders for a top quality finish.

bo-phan-cao-keo-jade-200

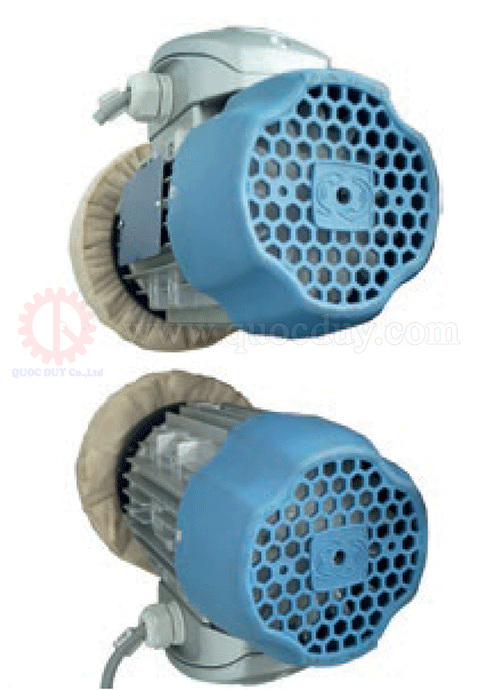

bo-phan-danh-bong-jade-200 Buffing unit for cleaning and polishing the edge and panel.

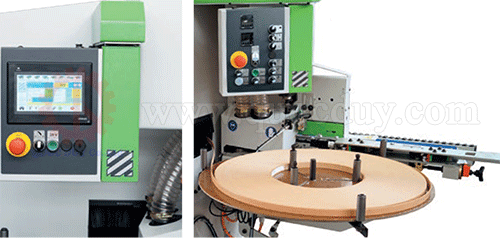

Visualisation and management of the glue temperature of the roller and the glue pot man-hinh-dieu-khien

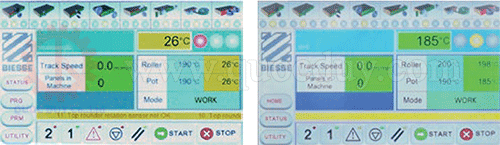

giao-dien-man-hinh-dieu-khien-jade-200 Easy program management thanks to the intuitive interface, available in numerous languages
 Specification
Model  JADE 225 JADE 240
Machine length 4168 mm 5213 mm
Panel height   10-60 mm
Height of edge banding material   14-64 mm
Thickness of edge banding material in rolls / strips    0.4-8 mm
Min panel length  150 mm
Min panel width (with length mm 150)  85 mm
Min panel width (with length mm 250)  50 mm
Track feed speed  12 m/min
Dust extraction system for each operating unit 1 hood dia 100 mm
Pneumatic connection  7 Bar
Glue pot capacity (approx.)
2 Kg
Glue pot heating time at ½ load (approx.)
10 min
With pre-milling unit
8 kW
With pre-milling & corner rounding unit
10 kW
