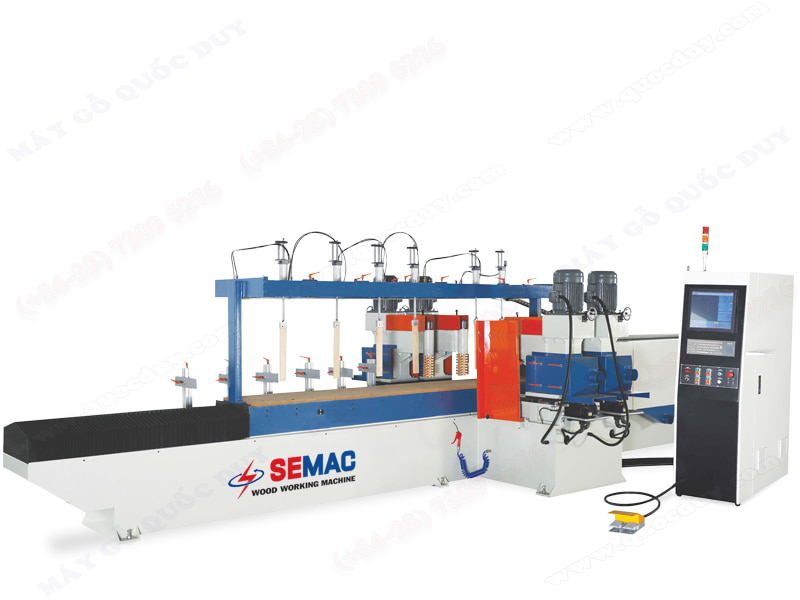

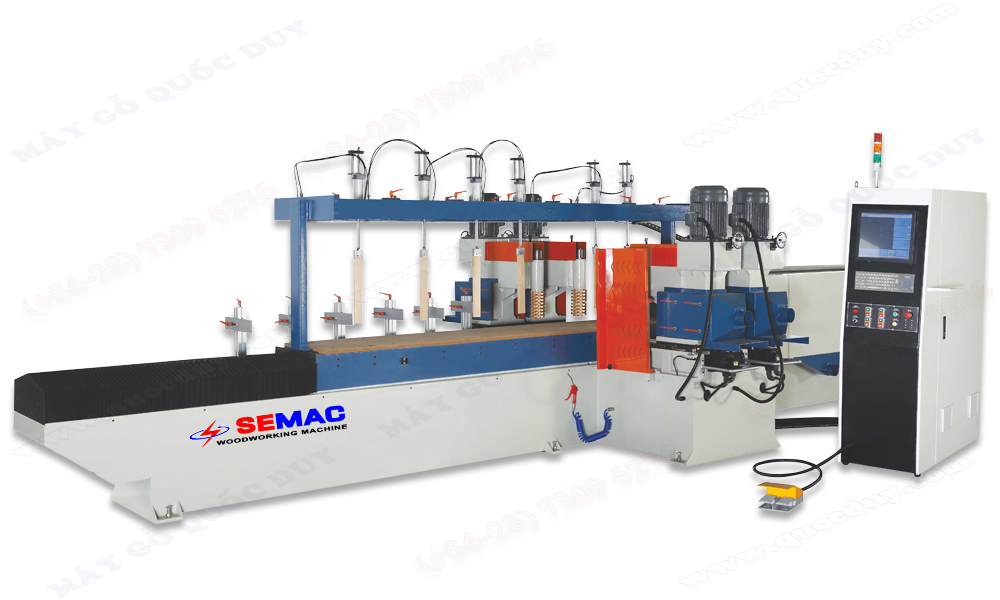

CNC AUTO DOUBLE SIDE COPY SHAPING MACHINE
CNC AUTO DOUBLE SIDE COPY SHAPING MACHINE
Model: SDX-SX4-2400
| Specification | |
|
Working height
|
200 mm
|
|
Working length
|
2400 mm
|
|
Working width
|
20mm - 320 mm
|
|
Spindle diameter
|
Ø40 mm
|
|
Spindle speed
|
8600 rpm
|
|
Main spindle power
|
7.5 Kw x 4
|
|
Speed milling
|
0-15 m/min
|
|
Speed returns
|
40 m/min
|
|
X-axis motor
|
2.0 kw
|
|
Y-axis motor
|
1.0 kw
|
|
Z -axis motor
|
1.0 kw
|
|
Collect chuck capacity
|
6
|
|
Air pressure required
|
6 kg/cm3
|
|
Machine size
|
8300x2700x2200 mm
|
