CNC BANDSAW MACHINE

  • Widely used in solid wood table, sofa, chair, bedside, etc

  • :SM-DR1
  • :Semac - Quoc Duy
  • :12 months
  • :Call
  • :

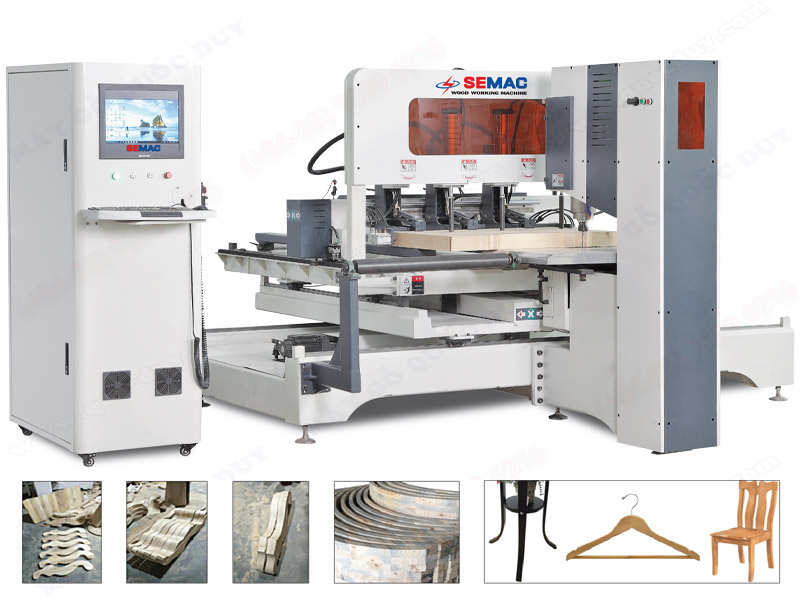

CNC BANDSAW MACHINE

Model : SM-DR1

SM-DR1-may-cua-long-cnc-mui-router
Features
 - High automation CNC. Specialized for cutting and bending wood, replacing traditional saw blades. Support for DXF or XML files. Create a one-click machining program, eliminating the process of notes.
 - Fast machining speed and high precision. Using a spiral-cutting tool, the rigidity is high, and  compared with the strip saw, the precision of the workpiece will not be caused by the saw blade shape.
 - Save the process, save labor. Straight out of the finished prodict, the processing surface is smooth , the processing angle is small, eliminating the vertical shaft process.
 - High safety. No close contact with knives to ensure production safety and reduce industrial and commercial risks.
 - Improve productivity and product quality
 - Using a separate feed system, cutting wood is stable
Specification
 Working table size
 1400 x 1500 x 130 mm
 Max. X-axis speed
 50 m/min
 Max. Y-axis speed
 20 m/min
 Max. U-axis speed
 20 m/min
 Spindle power
 5.5 Kw
 Spindle speed  0 - 18000 rpm
 Control system  TAIWAN HOGEN
 Specifications of router bits  Ø4 - Ø16
 Machine size  3400 x 2100 x 1450 mm
