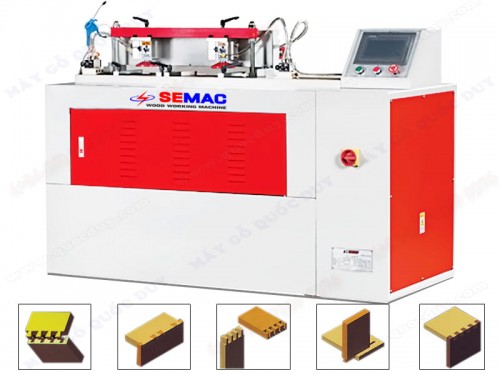

CNC DOVETAIL MACHINE
Model: CNC 500
|
Features
|
|
|

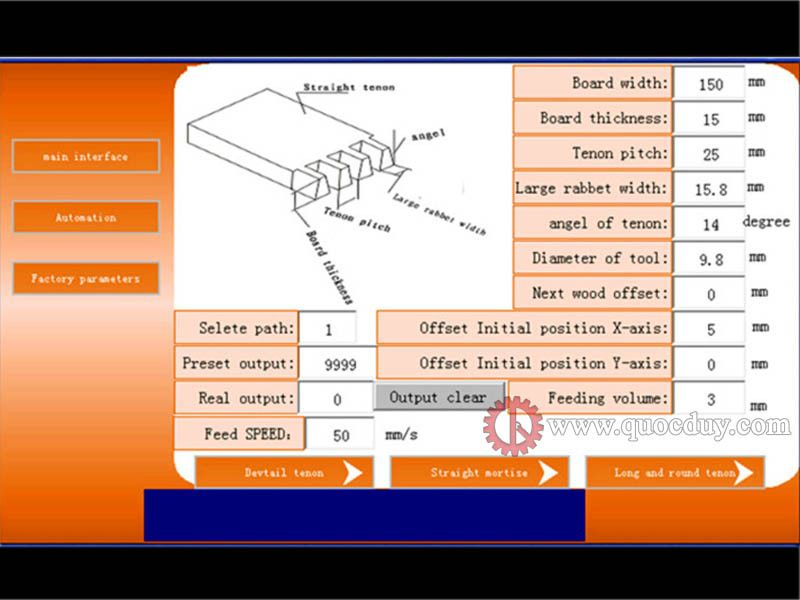

• The CNC Controller is configured to walk the operator through the machining process allowing virtually anyone to run it
• Elimination of Complicated Machine Set ups and Changeover saves on "Non Value Added" Labor Content
• Rework items are reproduced with no changeover time required
• Saves on valuable Manufacturing Floor Space by combining all operations into one machine
|
|
|
Specification
|
|
|
Spindle speed
|
: 17400rpm
|
|
Spindle Motor
|
: 3 kw
|
|
X-axis servo motor
|
: 0.75 kw
|
|
Y-axis servo motor
|
: 0.75 kw
|
|
Installation power
|
: 5.2 kw
|
|
Processing width
|
: max.500 mm
|
|
Processing thickness
|
: 5-25 mm
|
|
Tenoning space
|
: Adjustable
|
|
Dust extraction hoods
|
: Ø 100 mm
|
|
Process cycle
|
: 3-30 s
|
|
Machine dimension(L x W x H)
|
: 1650 x 895 x 1165 mm
|
|
Net weight
|
: 589 kg
|
|
