CNC ROUTER MILLING MACHINE
CNC ROUTER MILLING MACHINE

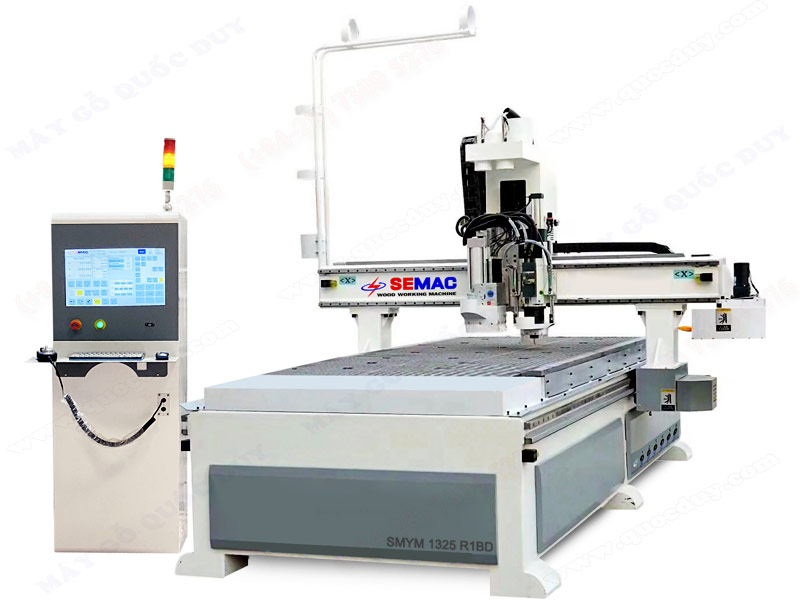

Model: SMYM 1325 R1BD
|
Functions
|
|
|
Perform a variety of processing types such as: drilling longitudinal holes, milling grooves, cutting boards in straight or curved lines, touching surfaces ... Can meet most of the processing needs of all interior products such as cabinets, shelves , tables, partitions, decorative walls, chairs... |
|
|
Features
|
|
|
Most electrical components and motors are carefully selected from famous brands to ensure high durability and stability. Equipped with automatic workpiece entry and exit system to improve productivity less dependent on labor The table top is divided into 6 zones high power vacuum suction 7.5 kw stabilizes the workpiece during the machining period Automatic tool change mechanism, the circular tool tray can hold 12 tools, ensuring continuous machining, saving time in alignment compared to manual tool change. XY (Rack) Z (lead screw) drive system controlled by high-speed and precise servo motor |
|
|
Machine Components
|
|
|
- Control system TAIWAN JK - Schneider Electric Components - Lead screw – Z axis, Taiwan - Driver MAXSINE - Inveter DELIXI - Rack – X,Y . Axis |
|
| Specifications | |
|
X-axis stroke
|
: 1300 mm
|
|
Y axis stroke
|
: 2800 mm
|
|
Z axis stroke
|
: 200 mm
|
|
Spindle capacity
|
: 9 kw
|
|
Motor drilling
|
: 1.7 kw
|
|
Number of tool trays
|
: 12 (Replacing knives and plates)
|
|
Spindle speed
|
: 1200 rpm
|
|
Dimensions of the desk
|
: 1220 x 2440 x 200 mm
|
|
Code
|
: G code
|
|
Accuracy
|
: ±0.05 mm
|
|
Vacuum motor
|
: 7.5 kw, 250 m3/h
|
|
Working voltage
|
: 380V, 50Hz
|
