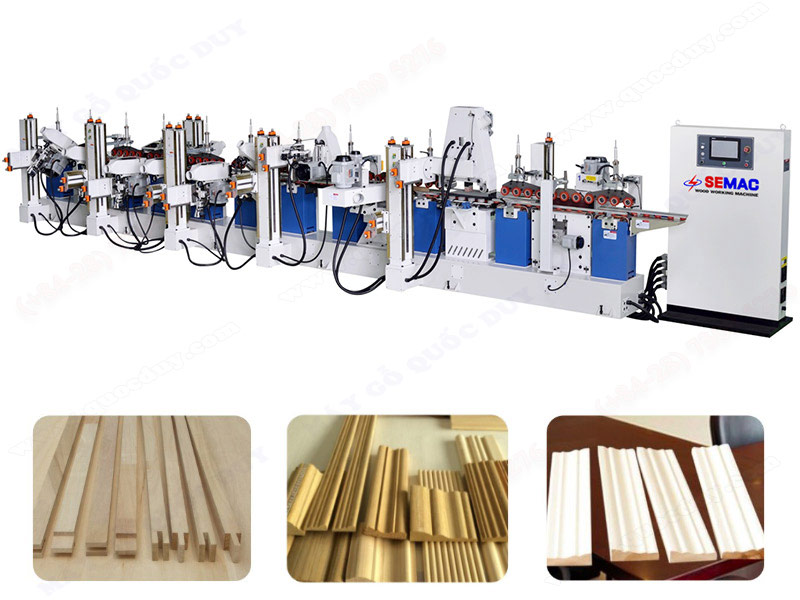

DOOR FRAME LINEAR SANDER
DOOR FRAME LINEAR SANDER
Model: SM-S4W8
|
Belt sanding unit=S triangle sanding
|
|
|
Press module length×width×height
|
: 150×80×50mm
|
|
Sanding motor
|
: 2.2kw*4
|
|
Oscillation motor
|
: 0.09kw*4
|
|
Pulley
|
: 200mm
|
|
Belt size
|
: 2060×80mm
|
|
Useful working width
|
: 80mm
|
|
Dist suction hood dia.
|
: Φ100mm
|
|
Compressed air
|
: 0.6Mpa, 2.0m3 /hour
|
|
This unit is build in solid structure composed by steel and cast aluminum, worked by CNC machine tools and it’s tiltable from -45°to + 90 °by manual, the cast iron post with 3-direction adjustable.
|
|
|
Oscillation of the abrasive belt by motor with gearbox
|
|
|
Belt tension on lateral aluminum pulley in order to avoid motor wearing Sanding pad pushing control by valve and pressure adjustable, forward and backward control by PLC Speed variable control by inverter |
|
|
Brushing sanding W unit
|
|
|
Sponge wheel size for top and bottom sanding
|
: Diameter:150mm
|
|
Sponge wheel size for left and right sanding
|
: Diameter:100mm
|
|
Disc motor
|
: 1.5kw*8
|
|
Motor spindle
|
: Φ25.4mm
|
|
Paper perimeter × width
|
: 840×100mm
|
|
Useful working width
|
: 100mm
|
|
Dust suction hood dia.
|
: Φ100mm
|
|
Compressed air
|
: 0.6Mpa,2.0m3 /hour
|
|
This unit is build in solid structure composed by steel and cast aluminum, worked by CNC machine tools and it’s tiltable from -90°to + 90 °by manual, the cast iron post with 3-direction adjustable
|
|
|
Brush sanding unit motor with reversible rotation, the motor spindle is complete with shaft spanner to clamp easy.
|
|
|
Speed variable control by inverter
|
|
|
This unit is complete with jumping system for go in and out at end of work piece, avoid the end over-sanding
|
|
| Specifications | |
|
Feeding speed
|
: 5-32m/min
|
|
Feeding table height
|
: 850mm
|
|
Feeding motor
|
: 4.07kw
|
|
Total power
|
: 25.23kw
|
|
Overall size
|
: 9800×1800×1600mm
|
|
Net Weight
|
: 4200kg
|
