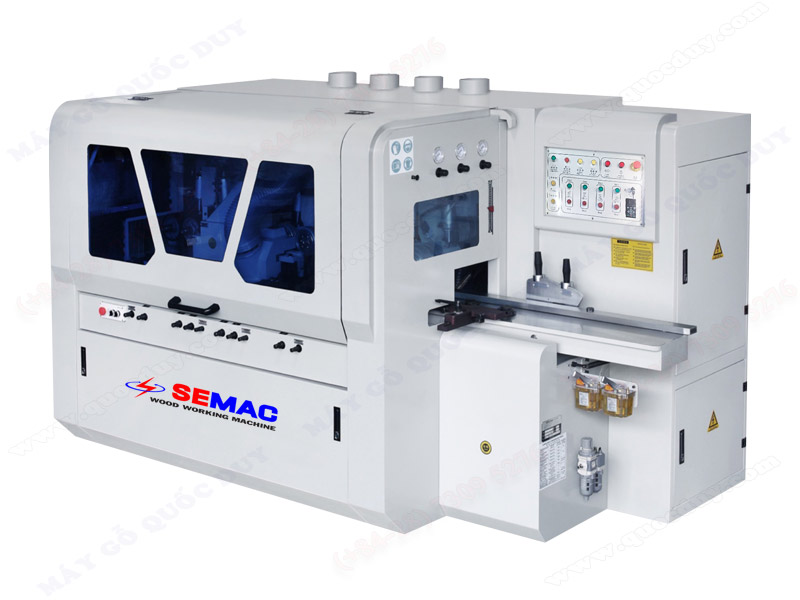

FOUR SIDE PLANER MACHINE
FOUR SIDE PLANER MACHINE working width from 25 - 160mm. High capacity planing shafts bring high efficiency to production
- :SMVK-B416
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
FOUR SIDE PLANER MACHINE
Model : SMVK-B416
|
Specification
|
|
|
Working width
|
: 25 – 160 mm
|
|
Working thickness
|
: 8 -130 mm
|
|
Working table length
|
: 580/300 mm
|
|
Main shaft diameter
|
: Ø40 mm
|
|
Feeding speed
|
: 5-40 m/min
|
|
Main spindle speed
|
: 7000 r/min
|
|
Pneumatic source pressure
|
: 0.6 mpa
|
|
Overall power
|
: 25 kw
|
|
Feeding power
|
: 4 kw
|
|
Right shaft
|
: 4 kw
|
|
Left shaft
|
: 4 kw
|
|
1st lower shaft
|
: 4 kw
|
|
1st upper shaft
|
: 5.5 kw
|
|
Machine size
|
: 3100 x 1420 x1660 mm
|
|
Net weight
|
: 2200 kg
|
