HEAVY DUTY THIN CUTTING FRAME SAW

  • :MAC-150
  • :Taiwan
  • :12 months
  • :Call
  • :

HEAVY DUTY THIN CUTTING FRAME SAW

Model : MAC-150

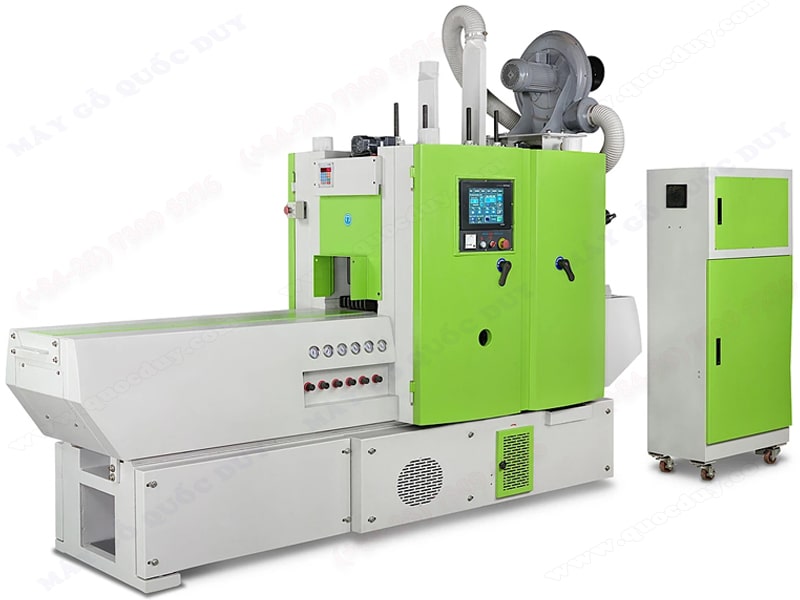

MAC-150-may-cua-long-tam-nhieu-luoi-ma

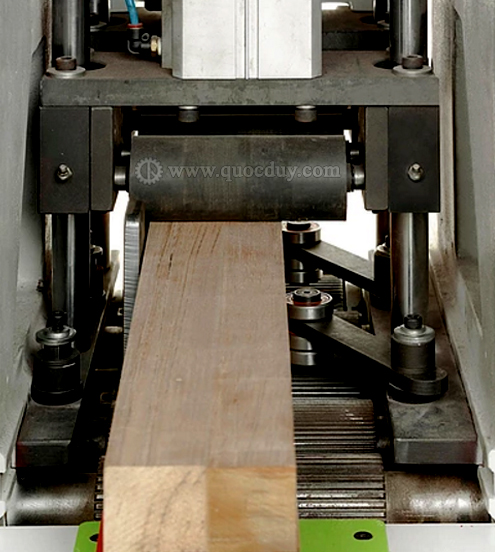

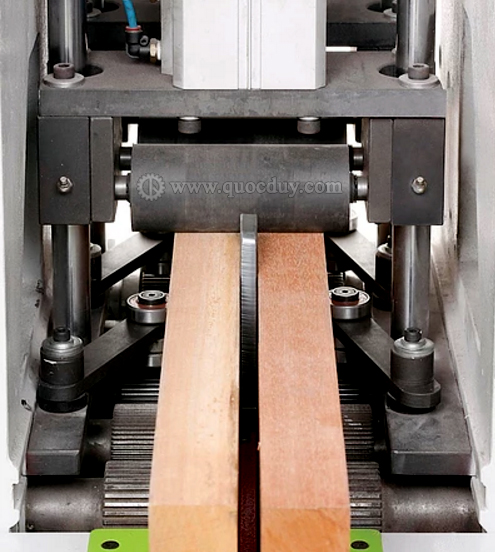

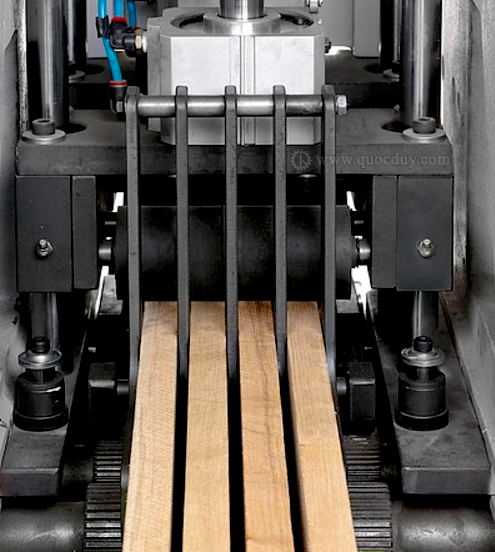

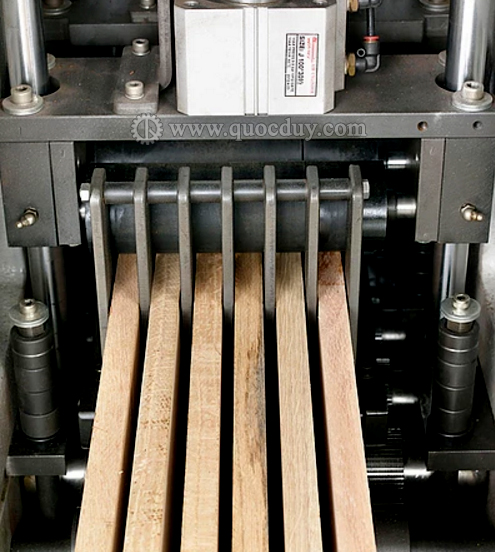

may-cua-long-tam-nhieu-luoi2 may-cua-long-tam-nhieu-luoi3 may-cua-long-tam-nhieu-luoi1 may-cua-long-tam-nhieu-luoi-mac3
FEATURES

▲ This machine allows for cutting moisturized wood materials. Height of cutting may reach 200 / 250 / 320 / 400mm
▲ Saw path loss 1.2~1.4mm for reducing wood material loss while increasing profit.
▲ Maximum feed speed up to 2.0M per minute!
▲ Saw frame speed up to 450~520 times per minute!
▲ The machine is equipped with a 10.4” Japanese-imported Mitsubishi colorful touch-sensing screen.
▲ The machine equipped with two sets of digital controller. Also, available to equip with 5.7” Mitsubishi colorful touch-sensing screen.
▲ Suitable for multiple slicing at a time.
▲ High profitable! The servo motor drive provides high positioning accuracy while the wood material input.

Suitable for production of composite parquet, venetian blind, air-tight window, pencil, door and guitar, etc.

SPECIFICATIONS
Cutting width
40 – 150 mm
Cutting height
60 – 200 mm
Minimum veneer thickness
2 mm
Saw blade length
500 mm
Feed
1mm/1.25mm/1.4mm
Specification saw blade:
500mm x 1.4mm x 0.9mm x 40mm x 15P
500mm x 1mm x 0.9mm x 40mm x 15P
500mm x 1.25mm x 0.8mm x 40mm x 13P
Feed speeds
0.2 – 2.5 m/min
Frame rate put
400 rpm
Time to replace the blade saw
10~ 40 hours
Power
15 Kw
Cooling Fan
1.5 Kw
Compressed air required
5kg/cm2 , 10 Ne /min
Dust hood outlet diameter and quantities
ψ125 x 2  ψ100 x 1
Cutting frame
2 pcs
Machine size
4300 x 900 x 1900 mm
Net weight
3000 kg
Number of saw blades
10 pcs
