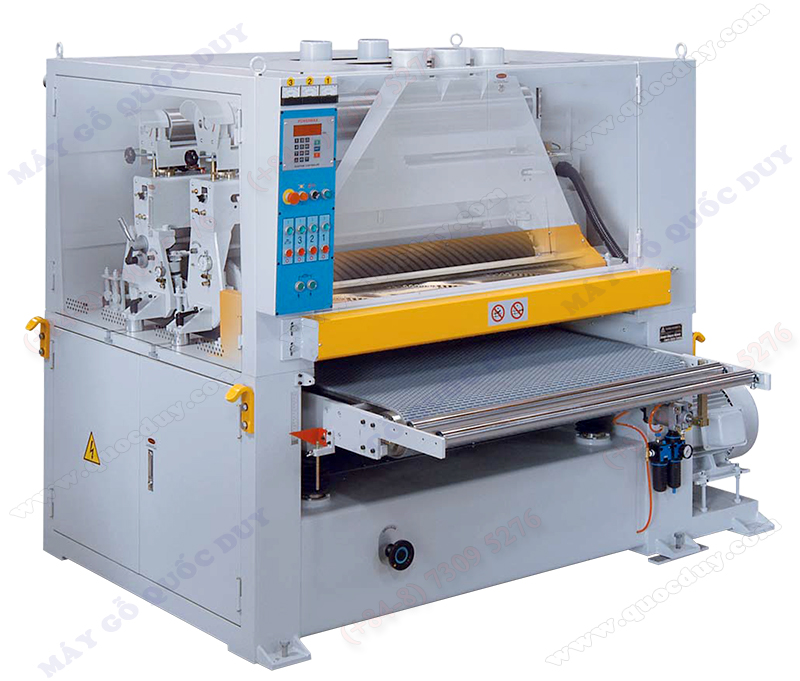

SPIRAL CUTTERHEAD PLANER SANDER

MODEL: PR-1300NDA

may-cha-nham-truc-bao-pr-52-nda
Advantage:

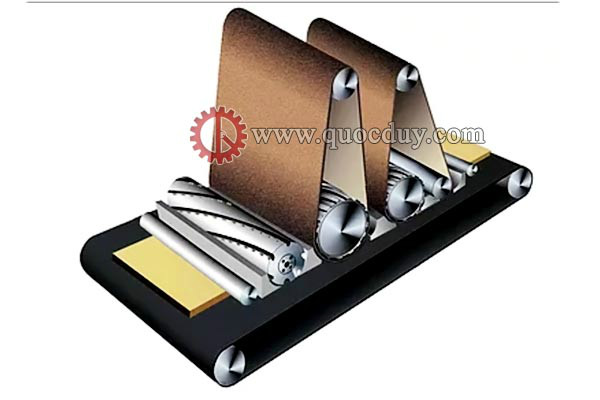

The  spiral cutterhead can be raised or lowered by turning a handwheel. A graduated scale is provided to indicate the thickness adjustment.

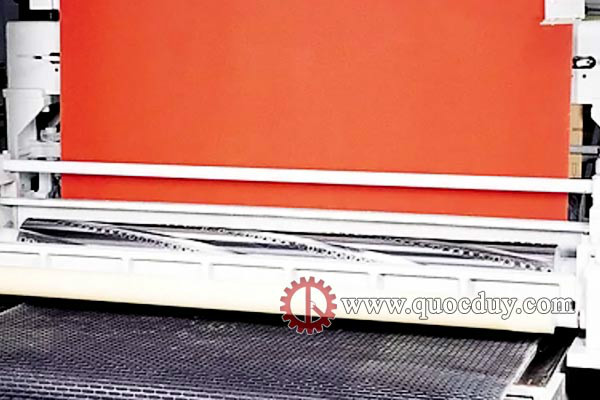

The spiral cutter head is fitted with four edge throw away Tungestien Carbide knife inserts. It is precisely machined, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect

Built at outfeed end of the machine, this panel cleaning brush roller clean powder on the sanded panel

Specifications
Working width
: 1300 mm
Working thickness
: 127 mm
Motor
: 30/25 HP
Feed motor
: 05 HP
Table motor
: 01 HP
Feeding speeds
: 6 – 26 m/min
Sanding belt size
: 1321 x 2134 mm
Đường kính trục chính
: Ø250 mm
Compressed air required
: 6 kg/cm2
Exhaust volume requirement
: 6860 m3/ h
Net weight
: 4700 kg
Gross weight
: 5200 kg
Dimensions machine
: 2718 x 2235 x 2032 mm
Packing size
: 2769 x 2261 x 2261 mm
Lifting tables adjusted by number
