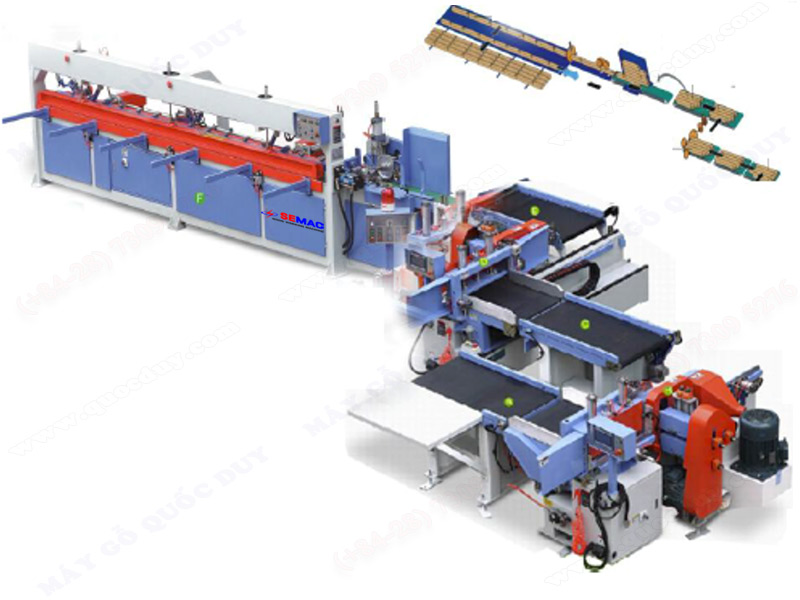

SYSTEM AUTOMATIC FINGER JOINT
- :SMBL 3515II+1560A
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
SYSTEM AUTOMATIC FINGER JOINT
Model: SMBL 3515II+1560A
|
CONVEYOR FEEDER
|
|
|
Working table size
|
: 1150 x 600 mm
|
|
Motor power
|
: 0.375 kw
|
|
Machine size
|
: 1180 x 1330 x 900 mm
|
|
FINGER JOINT SHAPER
|
|
|
Working table size
|
: 850 x 600 mm
|
|
Max. working size
|
: 850 x 80 x 150 mm
|
|
Min. working size
|
: 150 x 20 x 30 mm
|
|
Shaper spindle dia.
|
: φ70 mm
|
|
Shaper blade dia.
|
: φ160 mm
|
|
Main saw blade size
|
: φ255 mm
|
|
Shaper spindle speed
|
: 6000 rpm
|
|
Main saw spindle speed
|
: 2840 rpm
|
|
Air pressure
|
: 0.5-0.8 Mpa
|
|
Total power
|
: 16.12 kw
|
|
CONVEYOR FEEDER
|
|
|
Working table size
|
: 1150 x 600 mm
|
|
Motor power
|
: 0.375 kw
|
|
Conveyor size
|
: 1180 x 725 x 900 mm
|
|
FINGER JOINT SHAPER GLUE SPEADER MACHINE
|
|
|
Working table size
|
: 850 x 600 mm
|
|
Max. working size
|
: 850 x 80 x 150 mm
|
|
Min. workinf size
|
: 200 x 30 x 20 mm
|
|
Shaper spindle dia.
|
: φ70 mm
|
|
Shaper blade dia.
|
: φ160 mm
|
|
Main saw blade size
|
: φ255 mm
|
|
Shaper spindle speed
|
: 6000 rpm
|
|
Main saw spindle speed
|
: 2840 rpm
|
|
Air pressure
|
: 0.5-0.8 Mpa
|
|
Total power
|
: 16.87 kw
|
|
CONVEYOR ENDS FEEDER
|
|
|
Working table size
|
: 1150 x 600 mm
|
|
Motor power
|
: 0.375 kw
|
|
Conveyor size
|
: 1180 x 725 x 900 mm
|
|
AUTOMATIC FINGER JOINT ASSEMBLER – Model: SMLT-FJ 1525LA
|
|
|
Working lenght
|
: 2000-6000 mm
|
|
Working width
|
: 30-150 mm
|
|
Working thickness
|
: 18-80 mm
|
|
Main saw blade size
|
: φ 400 mm
|
|
Main saw spindle speed
|
: 3700 rpm
|
|
Air pressure
|
: 0.5--0.8 Mpa
|
|
Motor cut
|
: 3 kw
|
|
Oil pump motor
|
: 4 kw
|
|
Motor feeding
|
: 1.5 kw x 2
|
|
Total power
|
: 10 kw
|
|
Max. jointing force
|
: 7800 kgs
|
|
Machine size
|
: 8300 x 1650 x 1600 mm
|
|
Net weight
|
: 2650 kg
|
