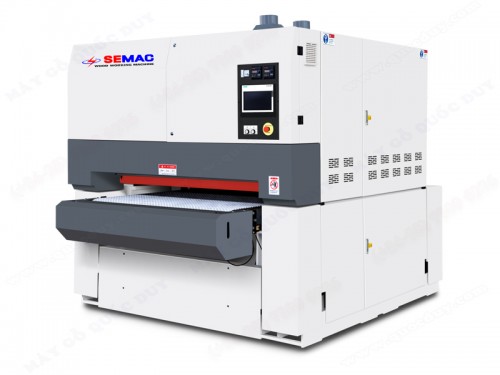

TRIPLE WIDE BELT SANDER FOR LACQUERED SANDING
TRIPLE WIDE BELT SANDER FOR LACQUERED SANDING
Model: SMS 1300RRR
|
Feature
|
|
|
- Shaft 1: diameter 320mm, hardness 26sh, power 11kw -6 levels, inverter adjustable
- Shaft 2: diameter 320mm, hardness 20sh, power 11kw-6 levels, variable frequency drive
- Axis 3: using imported 3m shaft, can make the surface sanding effect better.
- Conveyor belt KA 77, capacity 3kw adjustable inverter, lifting motor 1.1kw, brush motor 0.37kw
|
|
|
Specifications
|
|
|
Max. working width
|
: 1300 mm
|
|
Min. working length
|
: 420 mm
|
|
Working thickness
|
: 2-100 mm
|
|
Fixed desk height
|
: 850 mm
|
|
Sanding belt size
|
: 1330 x 2620 mm
|
|
Feeding speed
|
: 5-36 m/min
|
|
Compressed air
|
: 0.6 Mpa
|
|
Dust collection
|
: 11000 m3/h
|
|
Total power
|
: 32.02 kW
|
|
Machine size
|
: 2112 x 3272 x 2235 mm
|
|
Net weight
|
: 5700 kg
|
|
Electrical parts
|
|
|
1. The motor adopts the HM2 series three-phase asynchronous motor produced by China's national first-class enterprise "Shandong Huali Group Co., Ltd.", with good stability, enough power, IP54 protection level and durability.
2. Light control adopts "Pepper + Fuchs" brand photoelectric switch imported from Germany, which has strong light penetration, large effective distance and high durability.
3. The belt limit switch adopts the Japanese brand "Omron", which is flexible, durable and has a long service life.
4. Circuit breakers, buttons and contactors use Siemens low voltage electrical components, safe and reliable.
5. Solenoid valve, throttle valve, cylinder are all pneumatic components manufactured by Airtac Taiwan
|
|
