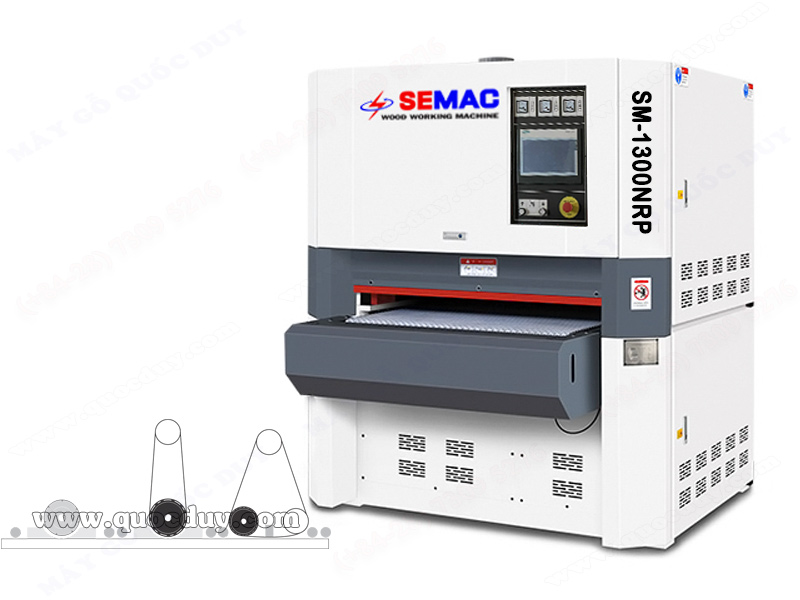

WIDE BELT PLANING/SANDING MACHINE 1300MM
SM-1300NRP planing sanding machine is designed with a solid frame, powerful motor for stable operation.
- :SM-1300NRP
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
WIDE BELT PLANING/SANDING MACHINE
Model: SM-1300NRP
|
Specification
|
|
|
Max. Working width
|
1300 mm
|
|
Min. Working length
|
540 mm
|
|
Working thinkness
|
10 – 160 mm
|
|
Dimension of abrasive belt
|
1330 x 2200 mm
|
|
Feeding speed
|
5 – 30 m/min
|
|
Motor #1
|
30 kw
|
|
Motor #2
|
22 kw
|
|
Motor #3
|
22 kw
|
|
Conveyor motor
|
4 kw
|
|
Lift table motor
|
0.55 kw
|
|
Rush roller motor
|
0.37 kw
|
|
Air pressure
|
0.6 Mpa
|
|
Exhaust volume requirement
|
13700 m3/h
|
|
Total power
|
78.92 Kw
|
|
Net weight
|
5600 kg
|
|
Machine size
|
2020 x 2770 x 2110 mm
|
|
