WIDE BELT SANDERS 3 CAPACITY

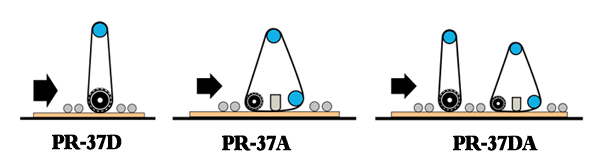

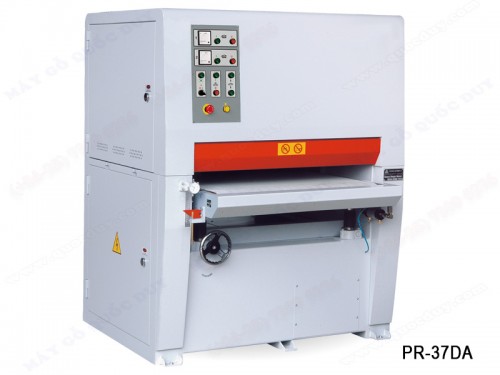

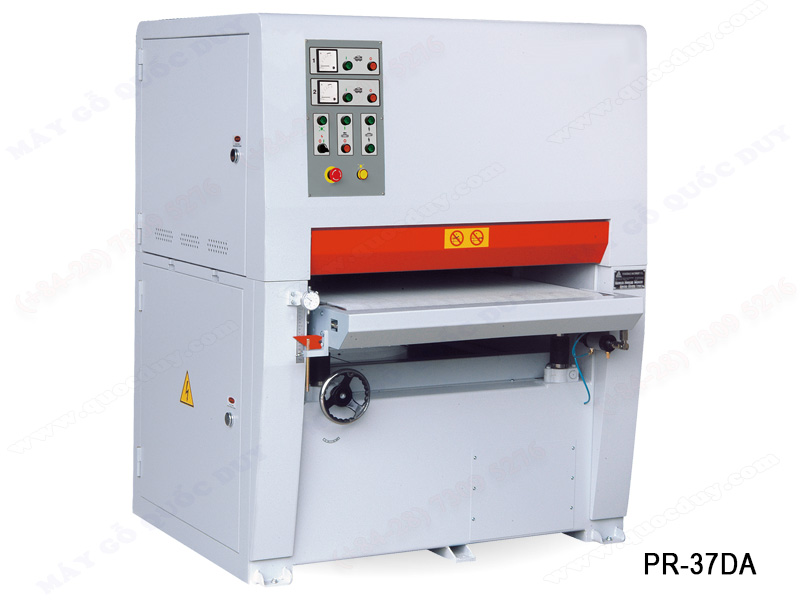

Model: PR-37D/PR-37A/PR-37DA
| Features | |||
|
PANEL CLEANING BRUSH ROLLER
Built at outfeed end of the machine, this panel cleaning brush roller clean powder on the sanded panel. FEED CONTROLLED BY FREQUENCY INVERTER
Used for adjusting the sanding belt speed. (Use together with hollow shaft speed reducer) VARIABLE SPEED UNIT

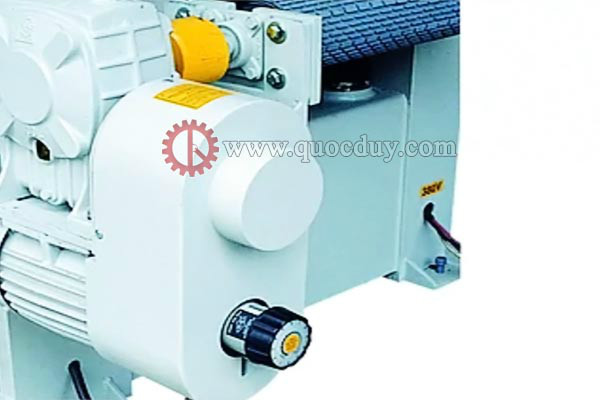

The conveyor belt speed is controlled by a variable speed unit. Feed speed can be varied as desired to suit all types of workpiece material,assuring superior sanding quality. SANDING BELT QUICK CHANGE DEVICE

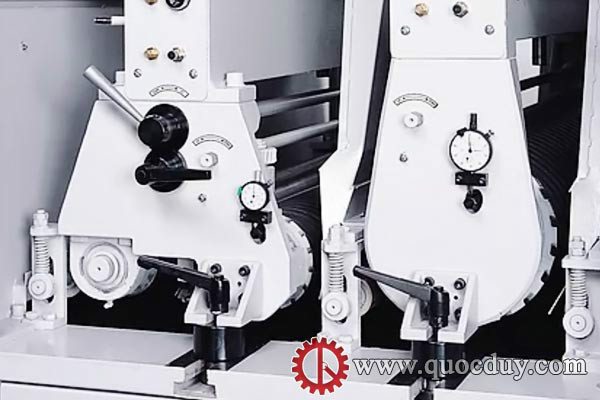

The sanding belt is changed quickly for time saving and convenience CONVEYOR BELT TRACKING CONTROL
The conveyor belt tracking is pneumatically controlled to effectively prevent out-of-track |
|||
| Specifications | |||
 |
|||
|
Working width
|
910mm
|
910mm
|
910mm
|
|
Working height
|
100mm
|
125mm
|
125mm
|
|
Main motor standard
|
20HP
|
15HP
|
20,15HP
|
|
Feed motor
|
2HP
|
2HP
|
2HP
|
|
Table hoist motor
|
1/2HP
|
1/2HP
|
1/2HP
|
|
Feed speeds (Variable)
|
4-16 M/min
|
4-16 M/min
|
4-16 M/min
|
|
Sanding belt size
|
940x1524 mm
|
940x1524 mm
|
940x1524 mm
|
|
Compressed air required
|
5 kg/cm²
|
5 kg/cm²
|
5 kg/cm²
|
|
Exhaust volume requirement
|
3090 M³/Hr
|
3090 M³/Hr
|
3500 M³/Hr
|
|
Net weight
|
900kg
|
900kg
|
1500kg
|
|
Gross weight
|
1150kg
|
1150kg
|
1900kg
|
|
Dimensions
|
1625x1346x1854 mm
|
1625x1346x1854 mm
|
1879x1625x1778 mm
|
|
Packing size
|
1701x1422x1981 mm
|
1701x1397x1981 mm
|
1981x1701x1930 mm
|
