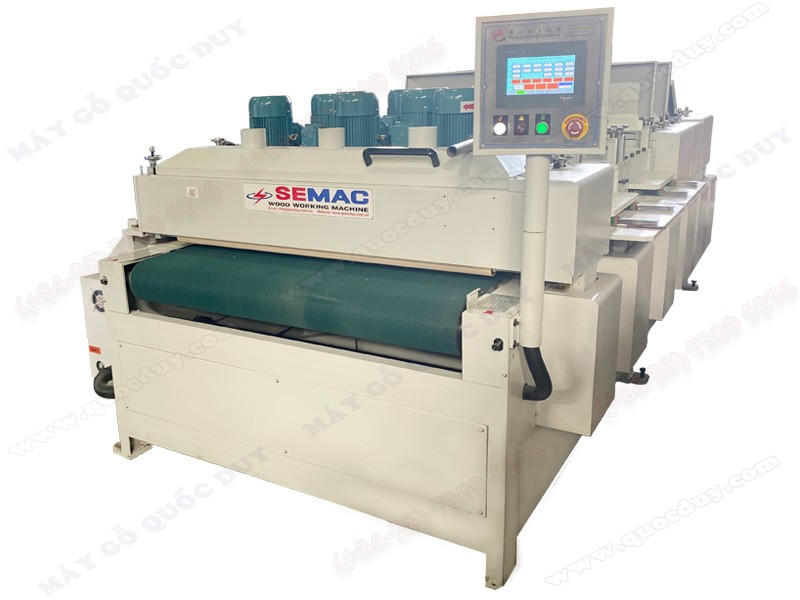

WOOD GRAIN DRAWING MACHINE 1300M
WOOD GRAIN DRAWING MACHINE 1300M

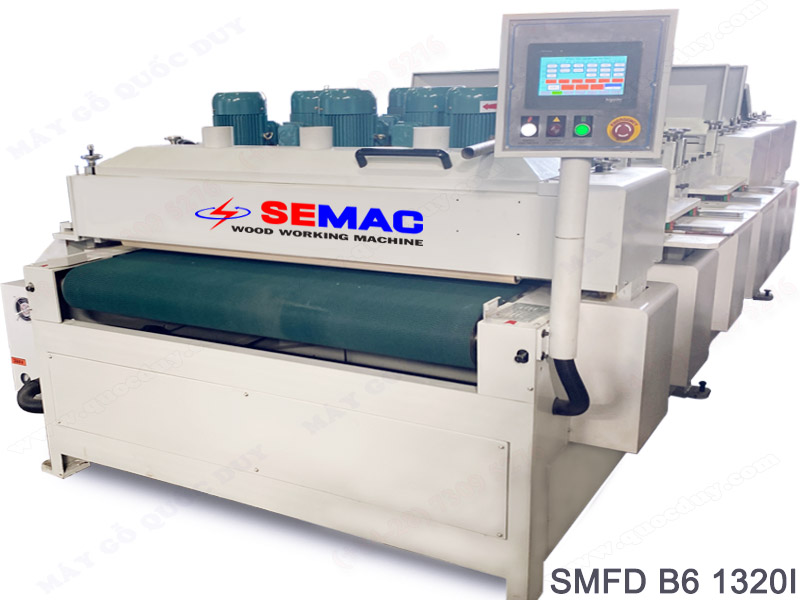

Model: SMFD B6 1320I
|
Features
|
|
|

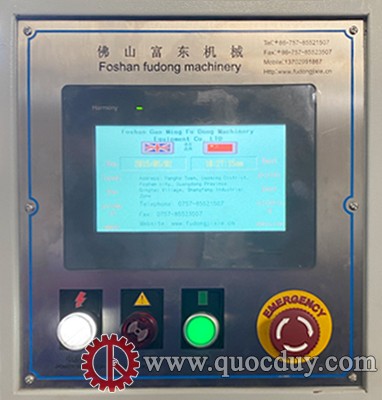

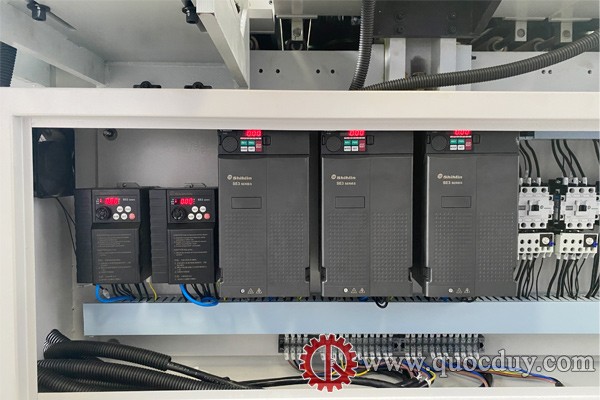

Equipped with 6 machining axes to improve working efficiency Fast roll speed Maximum working thickness 120mm Smart touch screen control, easy to operate Using shihlin inverter |
|
|
Specification
|
|
|
Feeding speed
|
: 0 – 18 m/min
|
|
Working thickness
|
: 3 – 120 mm
|
|

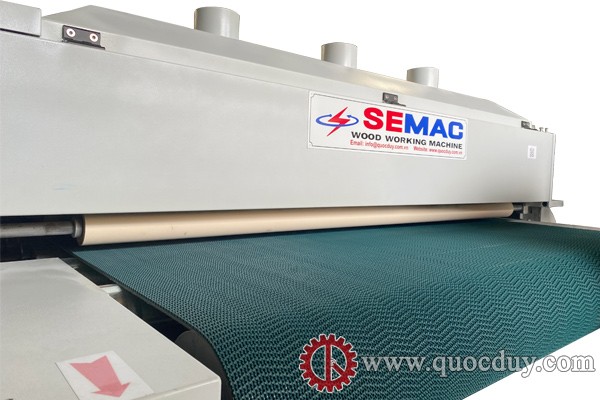

Conveyor motor
|
: 3 Kw
|
|

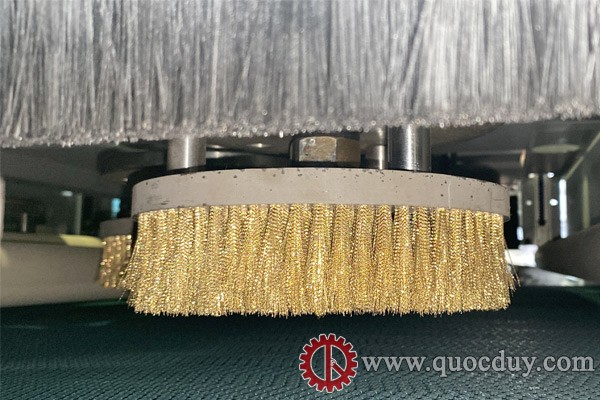

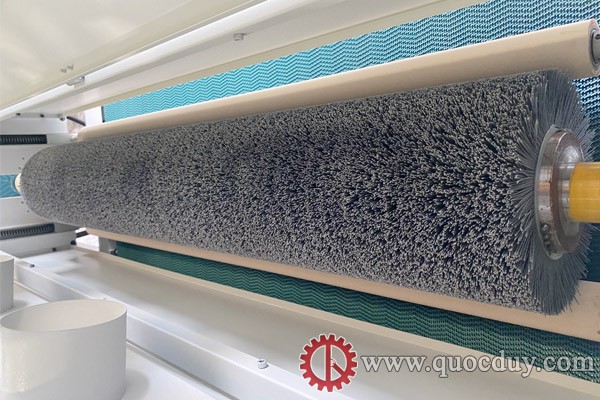

Shaft steel wire 1:
|
|
|
Steel wire diameter
|
: 0,3 mm
|
|
Motor
|
: 7.5 Kw
|
|
Shaft steel wire 2,3:
|
|
|
Steel wire diameter
|
: 0,25 mm
|
|
Motor
|
: 1.5 Kw
|
|
Shaft steel wire 4:
|
|
|
Steel wire diameter
|
: 0,3 mm
|
|
Motor
|
:7.5 Kw
|
|
Shaft steel wire 5:
|
|
|
Steel wire diameter
|
: 0.2 mm
|
|
Motor
|
: 5.5 Kw
|
|
Shaft steel wire 6:
|
|
|
Steel wire diameter
|
: 0.8 mm
|
|
Motor
|
: 5.5 Kw
|
|
Total auxiliary power
|
: 6.6 Kw
|
|
Power
|
: 66 Kw
|
|
Net wight
|
: 5200 Kg
|
|
Machine size
|
: 3710 x 2750 x 1750 mm
|
