2 - SPINDLE BORING HEAD

  • :2C-W
  • :Semac - Quoc Duy
  • :Call
  • :

2 - SPINDLE BORING HEAD

  1. Adjustable spacing between spindle: 13.5 - 164 mm.

  2. Great drilling capacity for wood ø10 - ø50 mm.

  3. The boring head accommodates high running speed up to 6000 RPM.

  4. Exclusively designed with arc theorem.

  5. Graduation adjustment for the desired size between two spindles.

  6. Ideal for application for general home products, assembly toys etc.

  7. Suited for fitting on general boring machines.

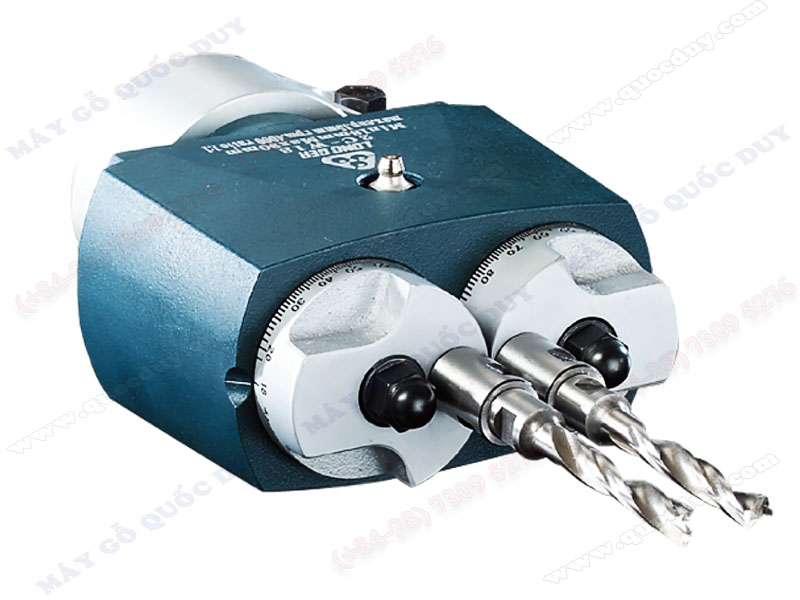

o-khoan-2-truc-2c-w

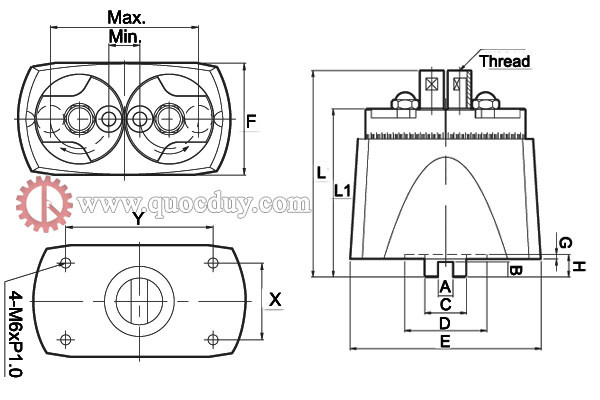

  • Model
    A
    B
    C
    D
    E
    F
    G
    H
    L1
    L
    X
    Y
    Min.
    Max.
    Max.
    capacity
    Spindle
    type
    2C-W13
    10
    10
    28
    55
    106.5
    57
    3
    15
    115
    140.5
    40
    73.8
    13.5
    73.5
    Ø10
    m8x1.25,
    2C-W18
    10
    10
    28
    55
    127.5
    67
    3
    15
    112
    137
    46
    88.8
    18
    90
    Ø15
    m8x1.25,
    m10x1.5
    2C-W25
    10
    10
    28
    55
    191
    109
    3
    16
    120
    145
    70.7
    70.7
    25
    151
    Ø15
    m8x1.25,
    m10x1.5
    2C-W22
    10
    10
    28
    55
    143
    82
    3
    15
    114
    139
    46
    88.8
    22
    106
    Ø20
    m8x1.25,
    m10x1.5
    2C-W26
    10
    10
    28
    55
    166
    92
    3
    16
    120
    145
    46
    88.8
    26
    126
    Ø30
    m8x1.25,
    m10x1.5
    2C-W36
    10
    10
    28
    55
    211
    114
    3
    16
    138
    163
    70.7
    70.7
    36
    164
    Ø50
    m8x1.25,
    m10x1.5
    2C-W19
    10
    10
    28
    55
    127.5
    67
    3
    15
    112
    137
    46
    88.8
    3/4"
    3 1/2"
    Ø5/8"
    7/16"x14
    2C-W254
    10
    10
    28
    55
    191
    109
    3
    15
    120
    145
    70.7
    70.7
    1"
    5 3/4"
    Ø5/8"
    7/16"x14
