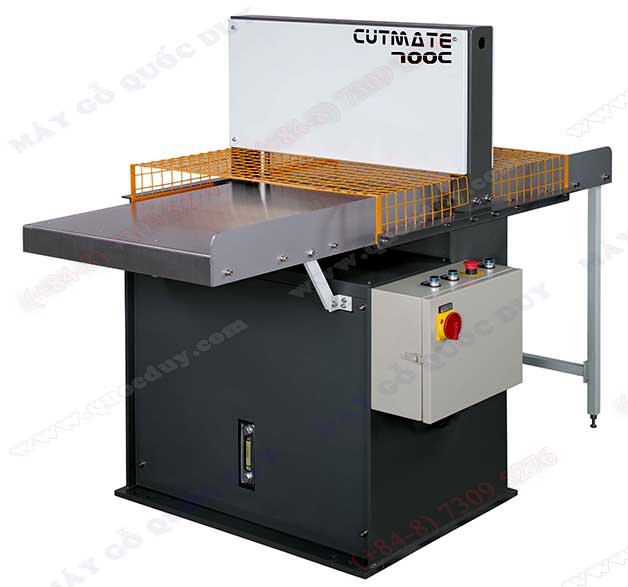

CROSS CUT VENEER CLIPPERS 700C
The cross cut veneer clipper is used for veneer cutting across the grain. All INNOVATOR’s guillotines are manufactured with European superior quality of its expertise
- :CUTMATER-700C
- :Taiwan
- :12 months
- :Call
- :
 |  |
CROSS CUT VENEER CLIPPERS
Model: CUTMATER-700C
| Features | |
|
- Green-line cutting guide light
- With European CE safety standards
- Protection guards covering the knife and pack beam
- Adjustable pressure with hydraulic knife and pack beam for all species of veneers
- The rigid welded machine body for cutting even 2.0 mm thick of single veneer sheet
- Cutting guide extending durability of the cutting knife and providing a squared cutting angle
- Straightforward electrical control panel with two-hand release relay for optimal safety concerns
|
|
| SPECIFICATIONS | |
|
Cutting Length
|
700mm
|
|
Daylight Opening
|
80mm
|
|
Electric Power
|
4.7kw
|
|
Dimensions(L x W x H)
|
1200x1800x1350
|
|
Net Weight
|
720kgs
|
