HOLLOW CHISEL MORTISER

HOLLOW CHISEL MORTISER
  • Table tilting 300 right or left for angle mortises ö Hand operated clamp on table hold stock in position

  • :TC-104/TC-105
  • :Taiwan
  • :12 month
  • :Call
  • :

HOLLOW CHISEL MORTISER

Model: TC-104/TC-105

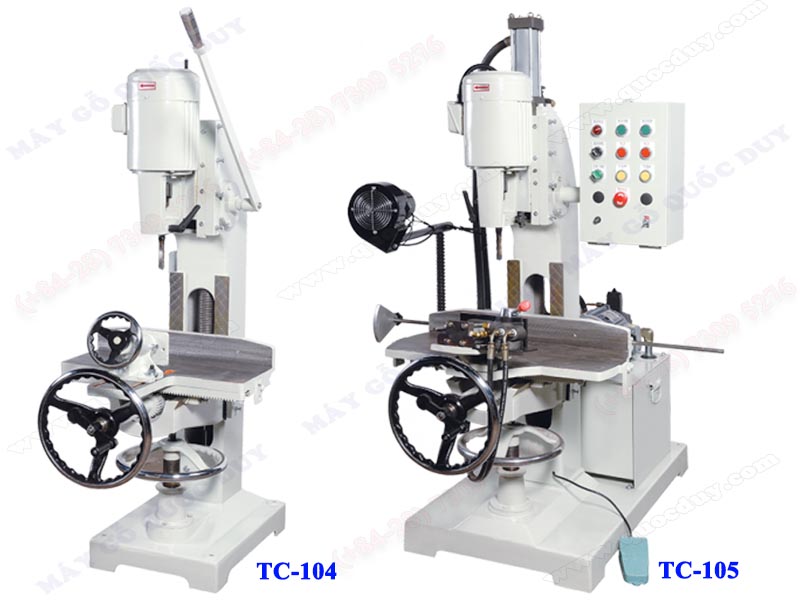

may-duc-mong-vuong-TC_104 may-duc-mong-vuong-TC_105

TC-104

TC 105

Features

Table tilting 300 right or left for angle mortises

Hand operated clamp on table hold stock in position

SPECIFICATION

TC-104
TC 105
Chisel range
6.35 - 19.05 mm
7- 25 mm
Table
425.5 x 539.8 mm
356 x 699 mm
Table cross traverse
127 mm
127 mm
Table longitudinal traverse
457 mm
457 mm
Table vertical traverse
305 mm
305 mm
Head drive
manual
Hydraulic
Clamp drive
manual
Hydraulic
Chuck capacity
29 mm
29mm
Spindle speed
3400 rpm
3400 rpm
Max stock width
305 mm
305 mm
Max mortising dept
102 mm
102 mm
Head motor
2 HP
2 HP
Hydraulic pump motor
1 HP
1 HP
Net weight
240 kg
380 kg
Gross weight
310 kg
-
Packing dimension
914.4x635x1625.6mm
-
