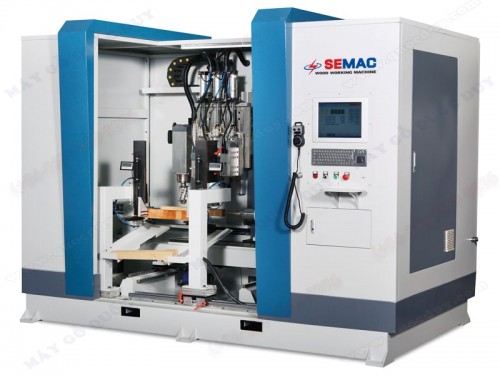

TABLE FOOT PROCESSING MACHINE CENTER
TABLE FOOT PROCESSING MACHINE CENTER
Model: SM-11
| Specifications | |
|
Software
|
: Windows 7
|
|
Working length
|
: 1500mm
|
|
Servo motor X axis
|
: 1 KW
|
|
Servo motor Y axis
|
: 750 W
|
|
Servo motor A axis
|
: 750 W
|
|
Servo motor Z axis
|
: 1kW/ With brake
|
|
Milling cutter speed
|
: 18000 rpm
|
|
Feed speed
|
: automatic
|
|
Vacuum port
|
: diameter 150*4pcs
|
|
Programming method
|
: right point
|
|
CAD drawing
|
: support
|
|
Slideway
|
: silver
|
|
Main milling motor
|
: 11kW
|
|
Main milling cutter speed
|
: 9000 rpm
|
|
Servo brand
|
: Taida
|
|
Precision rack
|
: K.H
|
|
Cylinder
|
: TBI
|
|
Machine dimension
|
: 3000x2200x2300mm
|
|
Net Weight
|
: 2000kg
|
|
Take-up port
|
: front
|
