Feature

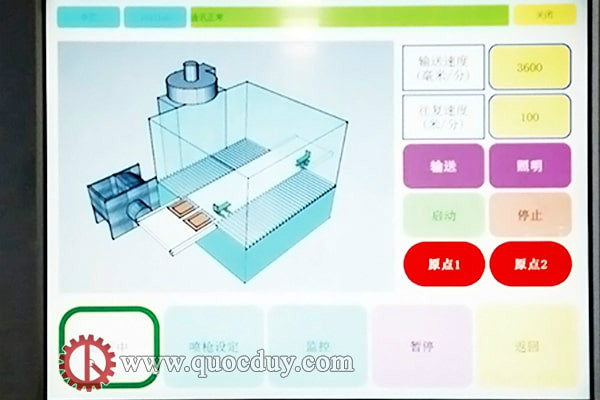

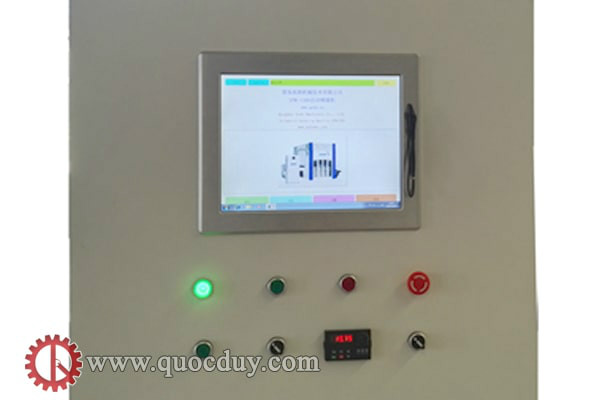

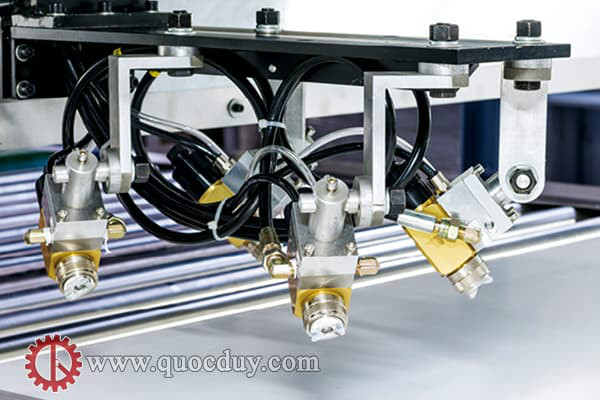

Spraying system - Reciprocators adopt JAPAN PANASONICA control system. The max. speed can reach 100m/min. there are 2 reciprocators of each machine. - Every reciprocator can equip 4 spraying guns and a relevant material-supply pump. - The grating scanner at the entrance can measure the width of work piece to make the stroke of guns and turn on/off time more exact. And at the same time the waste is reduced. The grating adopts Italy REER brand. - Using PLC control system makes it a simple and intuitive instrument to see. Air cycle system - Double filtering of the inlet air and closed spraying room make the air cleaner in the spraying room.
Specifications
Max. spraying width	1300mm
Max. thickness of work piece	80mm
Overall dimension	550044502500mm
Max. Feeding speed	8m/min
Air pressure	0.5-0.8 M pa
Total power	14kw
Weight	4000kg
Video

AUTOMATIC SPRAYING MACHINE

AUTOMATIC SPRAYING MACHINE

Model: SPM-1300PU

AUTOMATIC PAINTING MACHINE PU CONVEYOR INCLUDING GUN
