Feature

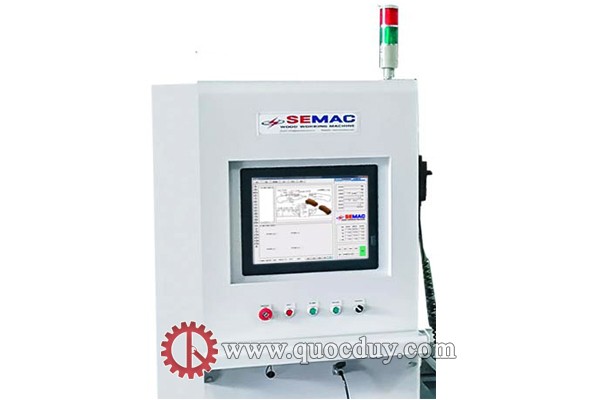

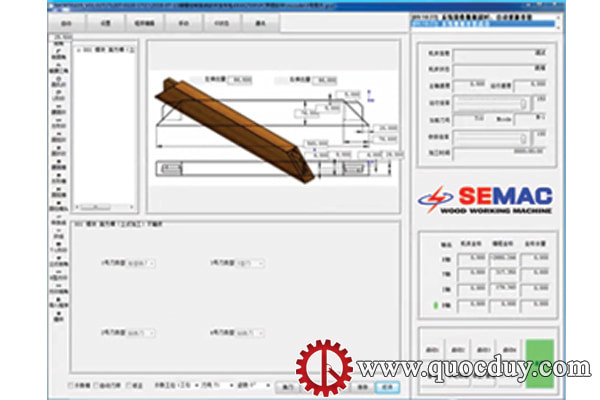

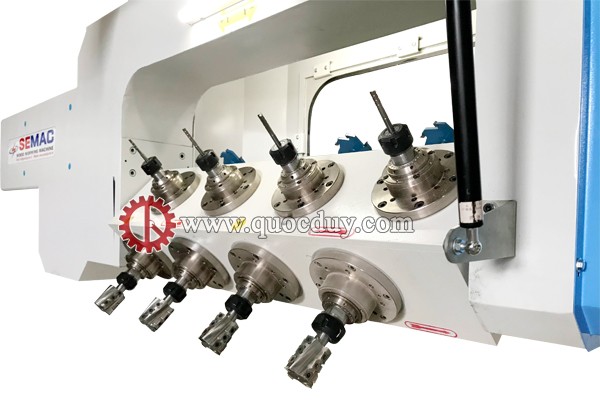

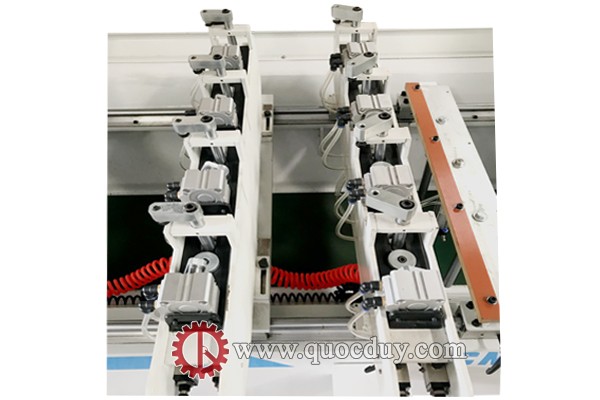

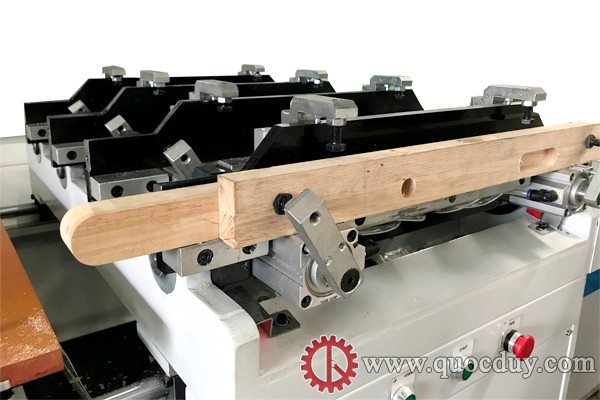

- The multi-head multi-axis design helps save processing time and improve working efficiency - Clamping devices ensures workpiece are to be fixed, anti-moving when machine processing - Just one set up, it is possible to process workpieces, the highest performance. The operation interface is simple and easy to use with 3D view mode
Specification
No.of spindle	4 axis ( X,Y,Z,A)
Motor power	5.5 Kw x 4, 3 Kw x 4
Max processing length	3900 mm
Max processing width	150 mm
Max processing height	120 mm
Operating voltage	380V
Working pressure	7-8kg/m²
Spindle speed	10000-18000 rpm (can adjustable)
Processing speed	Stepless speed regulation
Machine size	4600 x 2850 x 2600mm
Weight	3200 kgs
Video

CNC TENONER MACHINE

Model: SMT4X4-3500RT
