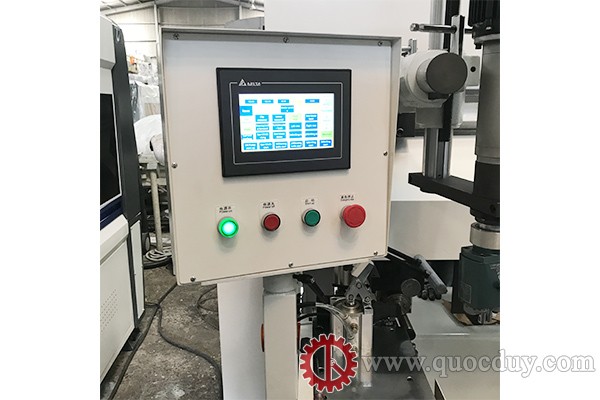

1. Suitable for plate and curved surface 2. Employs high precision servo motor combined with 3-axis controller for high speed , highprecision positioning control. 3. The machine is equipped with a human-machine interfacing conerol panel , providing maximum convenience for setting size, shape and position. 4. The individual drill upholder could prevent breakdown from the bottom after drilled . 5. The saw used with server motor and sensor , could apply camber faceplate to do more efficiency mechanics cutting.
Drilling motor	: 1.1 kw x 2
Main spindle motor	: 2.2 kw x 3
Hydraulic motor	: 1.5 kw
Spindle speed	: 15000 rpm
Net weight	: 2500 kg
Total weight	: 2900 kg
Machine size	: 2450 x 1580 x 1880 mm
Packing size	: 2550 x 1680 x 2230 mm
