Feature

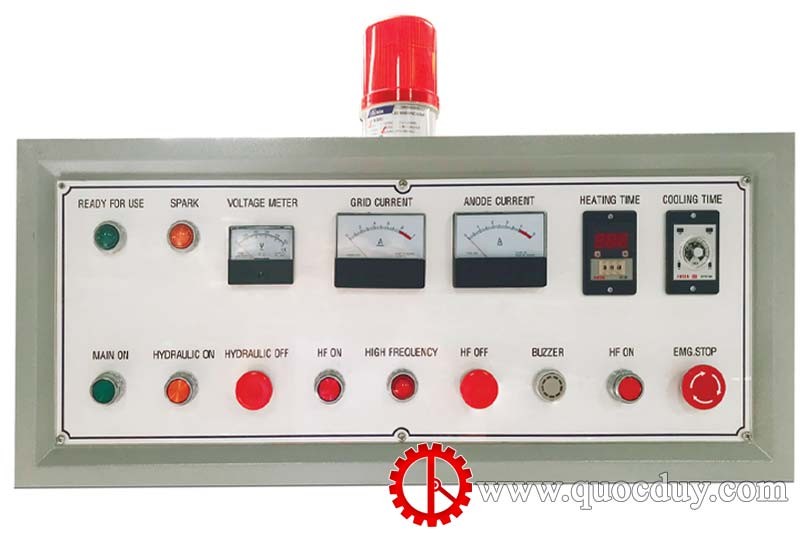

The machine frame is made of hardened steel to ensure high stability and durability User-friendly control panel with display unit for easy operation Hydraulic system: Raise the pressure on the surfaces to minimize the warping of the workpiece Table top: Made from aluminum, coated with non-stick teflon, resistant to high temperatures and very durable High-voltage safety system: Automatically disconnects when the discharge current exceeds the allowable rating Face pressure combined with flat surface creates a flat surface product without warping
Specifications
Main voltage	: 3 phase 380 (V +/- 5%) (50 Hz)
Input power	: 50 KVA
Pressed out products	: 1220 x 2440 mm

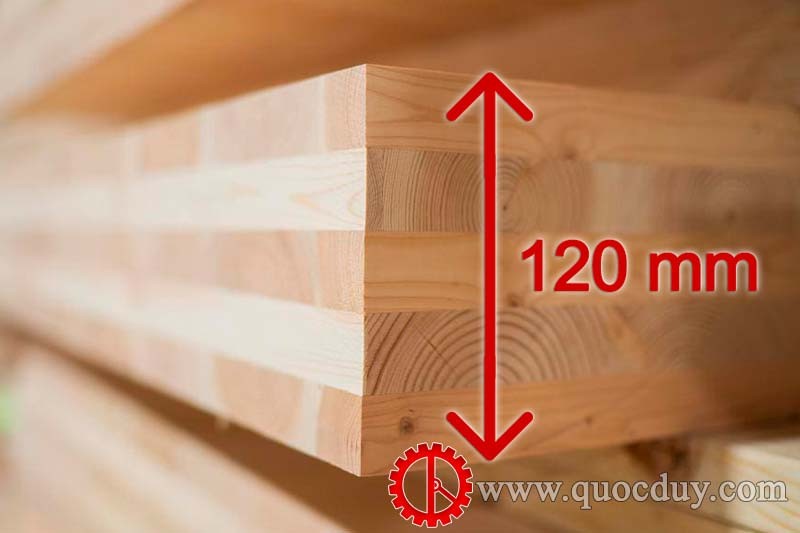

Max. height pressed	: 120 mm
Min. height pressed	: 15 mm
Pressure mode	: Hydraulic
Hydraulic motor	: 7.5 HP
Countertops	: Non - stick coating the top and bottom
No. of horizontal cylinders	: 12 pcs
No. of vertical cylinders	: 3 pcs
Feed motor	: 1.5 HP
Net weight	: 5000 kgs
Machine size	: 7700 x 2100 x 2200 mm
