Specifications
Max. Working width	: 1300 mm
Max.Working thickness	: 100 mm
Lifting power	: 7 x 0.25 Kw
Intergral lifting power	: 1.5 Kw
Conveyor motor	: 2.2 Kw
Conveyor speed	: 5 – 20 m/min
Swing motor	: 6 x 0.2 Kw
Screw roller speed	: 80 – 550 rpm
Screw roller motor	: 3 x 2.2 Kw
Screw roller number	: 3 set
Dia. Screw roller	: Ø300 mm
Adjustable brush speed	: 80 – 450 rpm
Disc brush motor power	: 6 x 0.75 Kw
Number of brushes	: 6 x 3 set
Dia. Brush tray	: Ø180 mm
Horizontal roller motor	: 2 x 1.5 Kw
Horizontal roller number	: 8 set
Dia. Horizontal roller	: Ø330 mm
Total power	: 26.95 Kw
The wind speed	: 22 – 30 m/s
Vacuum mouth	: 11 x 100 mm
Vacuum	: 11 x 635 m3/h
Net weight	: 5450 kgs
Machine size	: 4850x2150x2275 mm
Video

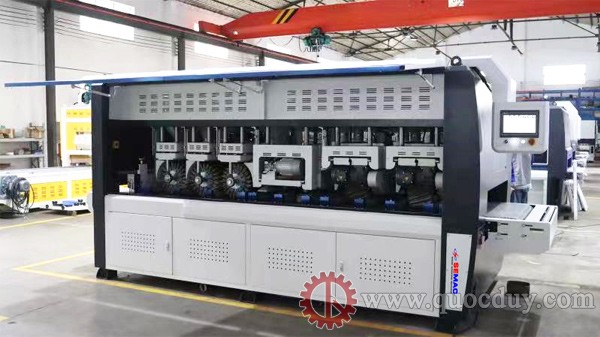

ROTATION BRUSH SANDER MACHINE

ROTATION BRUSH SANDER MACHINE

Model: SM-1300-7S
