Features
► Patented double sided grinding mode, free conversion of white and primer sand ► It is mainly used for grinding special – shaped surfaces of composite doors, grinding doors and plastic-absorbing doors. It can grind white blanks and primers on complex and irregular special – shaped surfaces ► PLC system control, multi-unit sand head flexible combination, each sanding unit can independently adjust the height and speed. It can connect with automatic production line, so as to effectively improve production efficiency

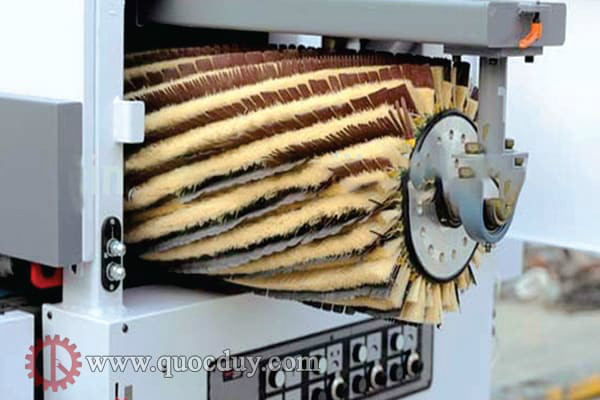

Easily pull out to change consumables
Fast connector design to ensure fast change
Replace the abrasive material directly

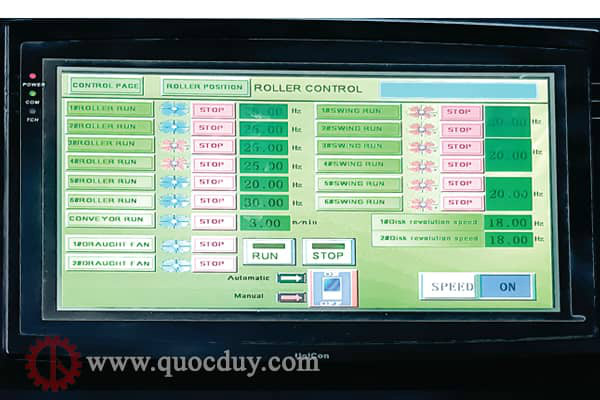

PLC control system
Specification
Max. width of workpiece	1300 mm
Min. length of workpiece	350 mm
Maximum processing height	10 -100 mm
Height of working table	850 mm
Conveyor machine power	1.5 kw
Power requirement	380 V 50 Hz
Vacuum mouth	Ø150 mm x 5
Main power	12.82 kw
Machine size	4330 x 2200 x 2100 mm
Machine weight	3800 kg
Video

WIDE AND HEAVY PROFILED SANDER 1300MM

WIDE AND HEAVY PROFILED SANDER

Model: SM-1300-6S
