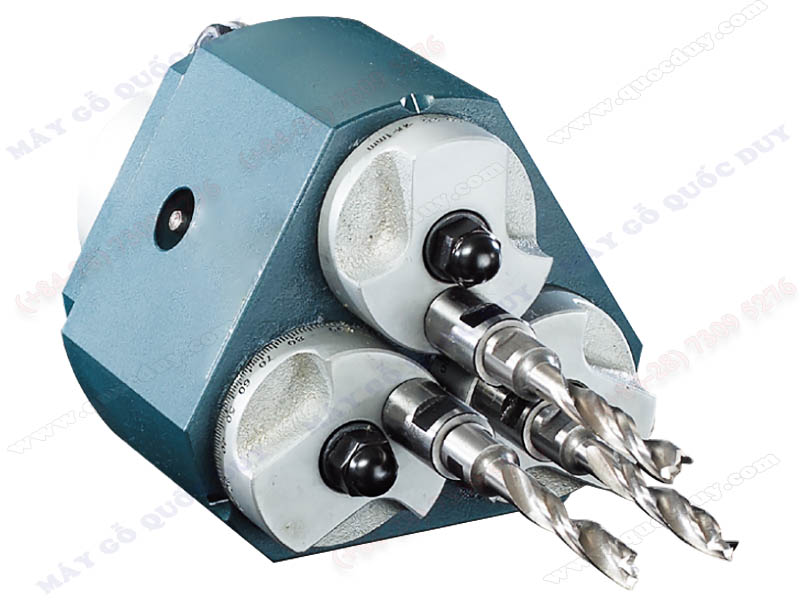

3 - SPINDLE LINEAR BORING HEAD
3 - SPINDLE (LINEAR) BORING HEAD
Model: 33C-W
- Adjustable distance between spindles: ø22 - ø180 mm.
- Great drilling capacity for wood ø10 - ø 50 mm.
- The boring head accommodates high running speed up to 6000 RPM.
- Exvluisvely designed with arc theorem.
- Graduation adjustment for boring fixed hold distance on triangle layout.
- Ideal for application for general furniture, and assembly toys etc.
- Suited for fitting on general boring machines.
|

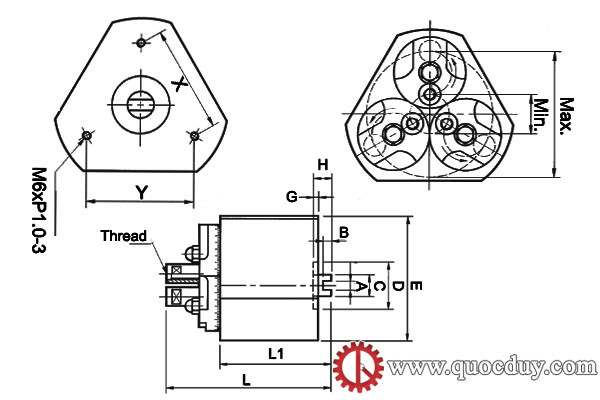

Model |
A |
B |
C |
D |
E |
G |
H |
L1 |
L |
X |
Y |
Min |
Max |
Max.capacity |
|
33C-W22 |
10 |
10 |
28 |
55 |
110 |
3 |
15 |
116 |
143 |
72.7 |
72.7 |
Ø22 |
Ø82 |
Ø10 |
|
33C-W28 |
10 |
10 |
28 |
55 |
126 |
3 |
15 |
107 |
132 |
86.8 |
86.8 |
Ø28 |
Ø100 |
Ø15 |
|
33C-W32 |
10 |
10 |
28 |
55 |
150 |
3 |
15 |
111 |
136 |
86.8 |
86.8 |
Ø32 |
Ø116 |
Ø20 |
|
33C-W38 |
10 |
10 |
28 |
55 |
177 |
3 |
15 |
119 |
144 |
86.8 |
86.8 |
Ø38 |
Ø138 |
Ø30 |
|
33C-W52 |
10 |
10 |
28 |
55 |
225 |
3 |
15 |
138 |
163 |
86.8 |
86.8 |
Ø52 |
Ø180 |
Ø50 |
