300 TON MEMBRANE PRESS

300 TON MEMBRANE PRESS
  • 300 Ton membrane press used to paste PVC veneer up to the panô plate, was shaped by vacuum methods, methods of compression and heat to radiate all over the product.

  • :BY994x8/30
  • :12 month
  • :Call
  • :

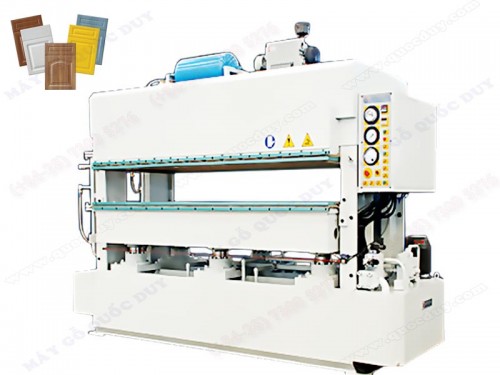

300 TON MEMBRANE PRESS

Model: BY994x8/30

may-ep-hut-chan-khong-by-994
Specifications
Total pressure
300 tons
Pressed number
2 pcs
The number of gaps
01
Presses
From the bottom up
Worktable size
2440 x 1220 mm
No.& Spec. of platens
2 x ( 2700 x 1370 x 52 mm)
No. & dia. of oil cylindSer
6( Ø150 mm)
Reted pressure
28 Mpa
Heating method
Dầu gia nhiệt
Opening of  platens
300 mm
Installed
54,6 Kw
Air pressure
0.8 Mpa
Max. working temperature
120 Co
Closing speed
17 mm/s
Dmensions inside of the tray with the smaller product overall size can be pressed all typesof panels.
Heating system for the pressure plate is heated by resistor heating oil.
Hydraulic Press
Includes gas chamber for pressing.
Open the automatic presses.
