AUTOMATIC PLANER
- :AN-24H
- :Taiwan
- :12 month
- :Call
- :
 |  |

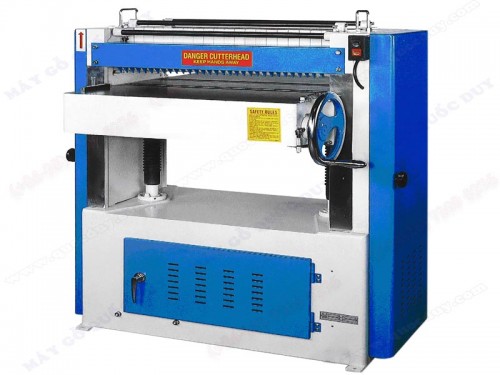

AUTOMATIC PLANER
Model: AN-24H
|
FEATURES - Enclosed machine structure. This series of planers is heavier thanAN-20 and AN-24 and more ideal for heavy duty planing. - Straight cutterhead is standard. Helical cutterhead and quick change cutterhead are optional. - Massive cast iron table is precision ground. - The table is equipped with two rollers for increasing feed smoothness. |
|
| SPECIFICATIONS: | |
|
+ Table area
|
: 635 x 775 mm
|
|
+ Max planing width
|
: 610 mm
|
|
+ Max planing thickness
|
: 178 mm
|
|
+ Min planing thickness
|
: 3 mm
|
|
+ Max cutting depth
|
: 6,4 mm
|
|
+ Knives
|
: 3 pcs
|
|
+ Knife sizes
|
: 610 x 30 x 3 mm
|
|
+ Cutterhead speed
|
: 5200 rpm
|
|
+ Feed speed
|
: 8 m/min
|
|
+ Cutterhead diameter
|
: 80 mm
|
|
+ Cutterhead motor
|
: 05 HP
|
|
+ Net weight
|
: 550 kgs
|
|
+ Gross weight
|
: 695 kgs
|
|
+ Packing size
|
: 1050 x 850 x 1260 mm
|
|
+ Machine size
|
: 950 x 780 x 1150 mm
|
