BEVELED AND STRAIGHT EDGE BANDING MACHINE

  • BEVELED AND STRAIGHT EDGE BANDING MACHINE PUR 350

  • :PUR 350
  • :Semac - Quoc Duy
  • :12 month
  • :Call
  • :

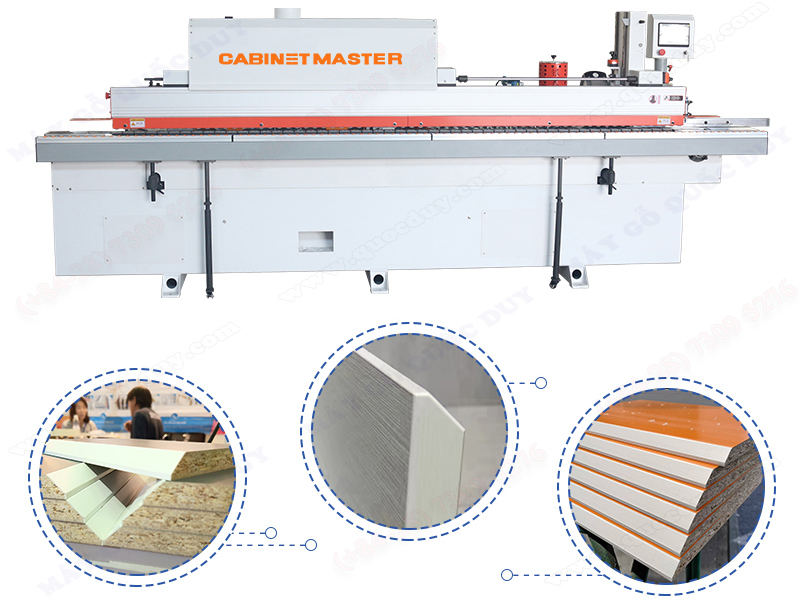

BEVELED AND STRAIGHT EDGE BANDING MACHINE

Model: PUR 350

PUR-350

Features

  • Easy adjustment of bevel milling shape and automatic pre-milling of bevel shape.
  •

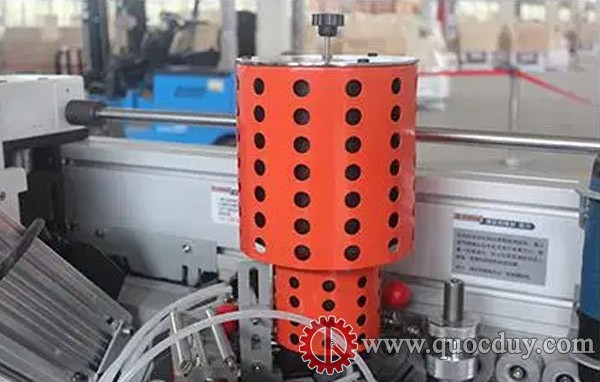

  • Upper glue pot design, available EVA and PUR, one key automatic debonding.
  •

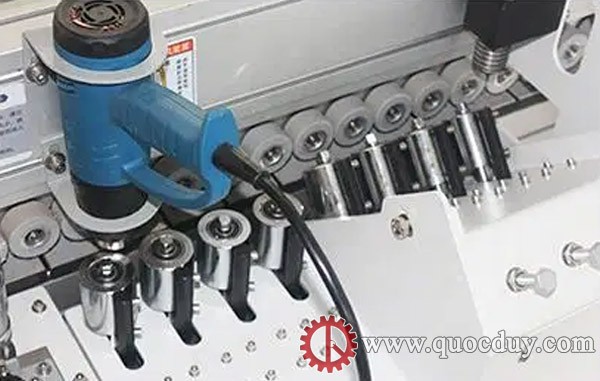

  • Auxiliary heating device makes the seal bond more firmly.
  •
  • 2L air storage tank, more stable pneumatic pressure.
  •
  • Compact structure, easy to transport.
  •
  • Automatic edge banding machine is focusing on processing 45 degrees bevel with straight edge shape, which can replace the handle.
  •
  • This machine includes pre-milling, gluing, bonding, end cutting, trimming, scraping and polishing.

Spectification

Voltage  : 380V/ 50Hz/ 3Phase
Total power  : 16kW
Air pressure  : 0.6-0.8Mpa
Glue pot capacity  : 2600ml
Glue pot temperature  : 110°C-210°C
Type of hot melt adhesive  : PUR/EVA
Edge banding width  : 20 - 40 mm
Edge banding thickness  : 0.5 - 2 mm
Board thickness  : 14 - 25 mm
Slotting height  : 3 - 23 mm
Straight edge height  : >= 5mm
Working size  : >= 250*150mm (250 is the size of the edge banding direction)
Working speed  : 12m/min
Tank volume  : 2L
External vacuuming  : 100mm*3
Type of edge banding material  : PVC, veneer
Dimensions  : 4500*1100*1640mm
Weight : 1330kg
