CNC MACHING CENTER

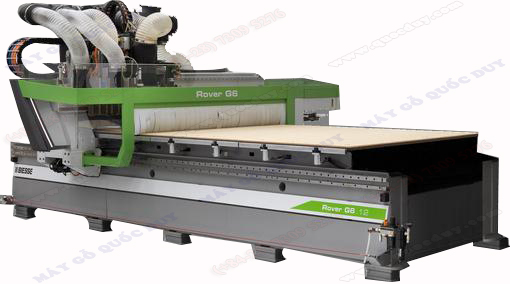

Rover G 512 FT is the Gantry machine with high productivity for the processing of large size panels. Its working table allows to perform boring, milling and sawblade cutting operations, obtaining elements of different shapes and sizes from a single panel of medium / large format.
- :ROVER G512 FT
- :Italy
- :12 months
- :Call
- :
 |  |
CNC MACHING CENTER
Model: ROVER G512 FT
|
SPECIFACTIONS
|
|
Working Field:
X = 3765mm
Y = 1560mm
Z = 160mm
Stratfied Phenolic Matrix Table
Table Accepts Vacuum Pods
3 Front Pneumatic Pin Stops
3 Back Pneumatic Pin Stops
2 RH Side Pneumatic Pin Stops
Machine Pre-Arranged for Automatic Loading System
Automatic Lubrication System
Remote Keyboard for Easy Set Up
Powerful HSD 16.1HP Electrospindle
Accepts HSK F63 Tool Holders
Machine Equipped with "C" Axis
8 Position Tool Changer
Pre-Wired for Additional Tool Changer
Tool Length Pre-Setter
BH 18 Boring Head
14 Independent Vertical Spindles (7inX & 7 in Y)
2 Double Sided Horizontal Spingles
Busch Mink Rotary Claw Vacuum Pump
Air Conditioned Control Cabinet
PC w/17" Color Monitor, Keyboard & Mouse
DVD Rader & Ethernet Card
"BiesseWORKS ADVANCED" software included.
Biesse Nest Module Included.
Multi-Tap Transformer for Different Voltages
|
