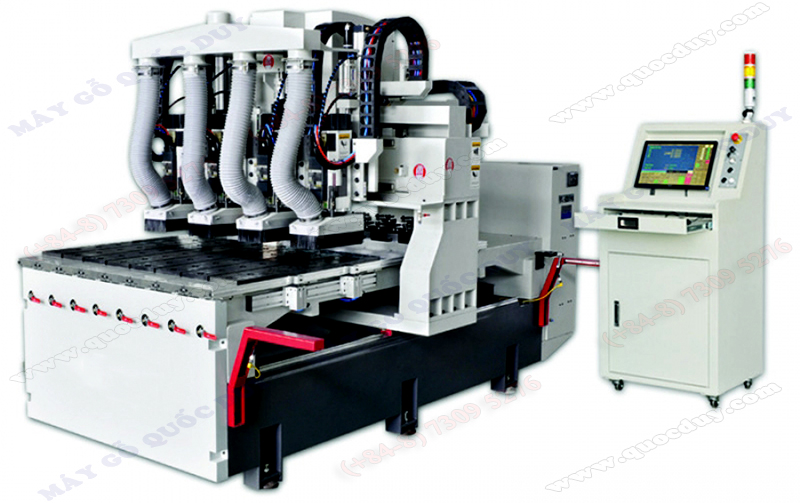

CNC ROUTER MACHINE
- :YL-1209-4R
- :Taiwan
- :12 month
- :Call
- :
 |  |
Model: YL-1209-4R
| Specifications | ||
|
Capacity
|
Max.workpiece sizes
|
4 x 3 feet
|
|
Travel
|
X-axis rravel
|
1200 mm
|
|
Y-axis rravel
|
900 mm
|
|
|
Z-axis rravel
|
230 mm
|
|
|
Spindle nose to table
|
255 mm
|
|
|
Distance between columns
|
1330 mm
|
|
|
Table
|
Table area
|
1200x900 mm
|
|
Feed Rate
|
Cutting feed rate
|
8 M/min
|
|
X-axis rapid traverse
|
40 M/min
|
|
|
Y-axis rapid traverse
|
40 M/min
|
|
|
Z-axis rapid traverse
|
10 M/min
|
|
|
Spindle
|
Spindle speed(Variable)
|
1000~24,000 rpm
|
|
Spindle taper
|
ER 32
|
|
|
ATC
|
Magazine type
|
Linear type
|
|
Tool shank
|
ISO 30
|
|
|
Tool numbers
|
8 pcs
|
|
|
Shelf
|
8 pcs
|
|
|
Collect
|
8 pcs
|
|
|
Cutter
|
Router bit sizes
|
3~80 mm
|
|
Collect sizes
|
3~20 mm
|
|
|
Motor
|
Spindle motor (Made in Italy)
|
9KW x 4
|
|
X-axis motor
|
1.5KW
(DELTA ASDA-A2)
|
|
|
Y-axis motor
|
2KW
(DELTA ASDA-A2)
|
|
|
Z-axis motor
|
1.5KW
(DELTA ASDA-A2)
|
|
|
Vacuum pump motor
|
10 HP
|
|
|
Others
|
Air pressure required
|
6 kgf/cm²
|
|
Dimentions (LxWxH)
|
2000x4100x2160 mm
|
|
|
Packing size (LxWxH)
|
2100x4100x2200 mm
|
|
|
N.W/G.W
|
4900~5200 Kg
|
|
