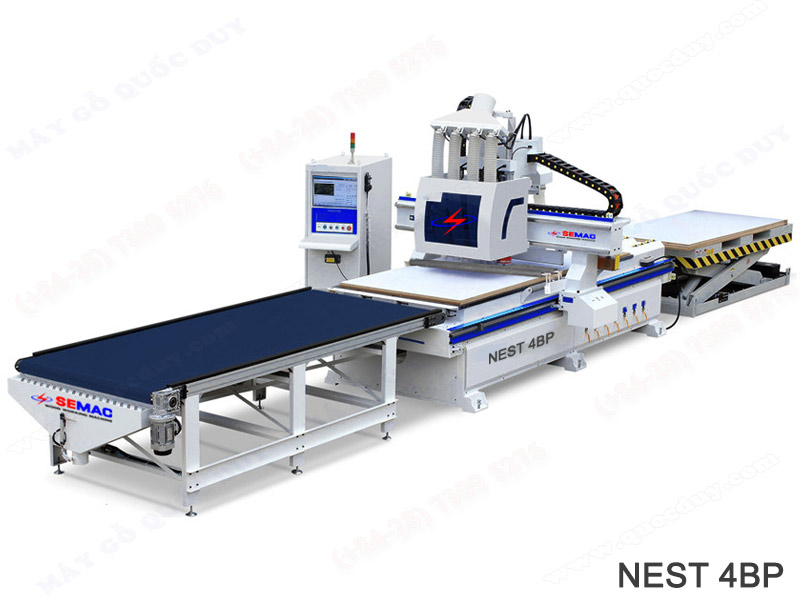

CNC router Nesting 4 head with Rollers Hold-Down Unit
CNC ROUTER NESTING 4 HEAD WITH ROLLERS HOLD-DOWN UNIT
Model: NEST 4BP
Features
|
|
- Syntec system
- Motor servo : Syntec - Taiwan
- Porwer : Siemens
- Inverter : Delta – Taiwan
- Automatic loading and unloading work tables improve work efficiency
- Adopting the vacuum adsorption table, it has the advantages of high adsorption force and no running board during processing..
|
|
Specifications
|
|
Working size
|
: 1300 x 2500 mm
|
Axis Z
|
: 260 mm
|
Axis speed X
|
: 60 m/min
|
Axis speed Y
|
: 60 m/min
|
Axis router power
|
: 6 kw x 1 / 4 kw x 3
|
Spindle speed
|
: 18000 rpm
|
Vacuum
|
: 5.5 kw
|
Dust blower
|
: 150 mm
|
Air pressure
|
: 6 kg/m3
|
