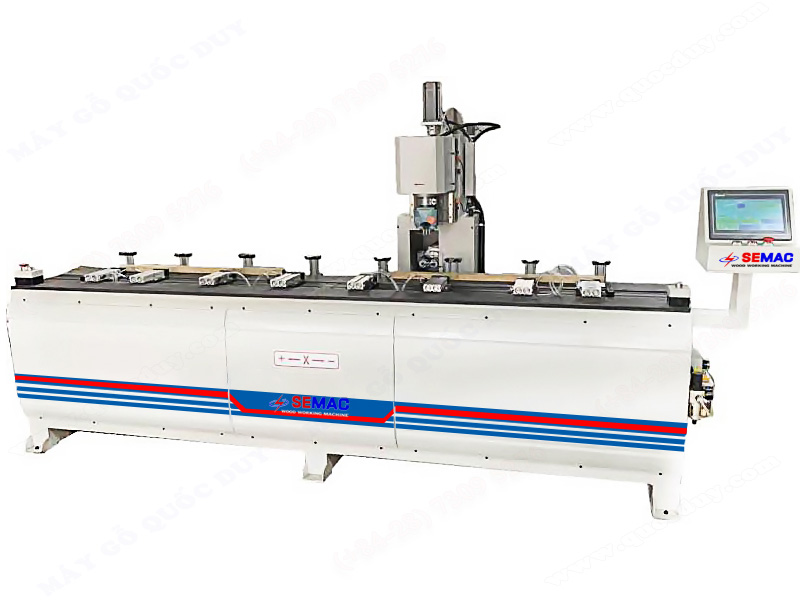

CNC VERTICAL AND HORIZONTAL DRILLING MACHINE
CNC VERTICAL AND HORIZONTAL DRILLING MACHINE
Model: SM-2400D2
|
Specifications
|
|
|
Processing length
|
2300 mm
|
|
Max. working thickness
|
90 mm
|
|
Max. working width
|
150 mm
|
|
Spindle speed
|
2800 rpm
|
|
Vertical and horizontal drilling motor
|
1.5 kw
|
|
Equipped with Puden drill head
|
3 holes (adjustable)
|
|
X, Y, Z moving linear slides are adopted
|
25 mm
|
|
X-axis servo power
|
1 kw
|
|
Y-axis servo power
|
0.75 kw
|
|
Z-axis servo power
|
0.75 kw
|
|
Machine size
|
3470 x 1500 x 1700 mm
|
|
Servo, PLC
|
Delta
|
|
