DOUBLE ENDED SAWING MACHINE

  • DOUBLE ENDED SAWING MACHINE S-Type 6 Spindle Configuration

  • :ECT–86S
  • :Taiwan
  • :12 Months
  • :Call
  • :

DOUBLE ENDED SAWING MACHINE

Model: ECT–86S

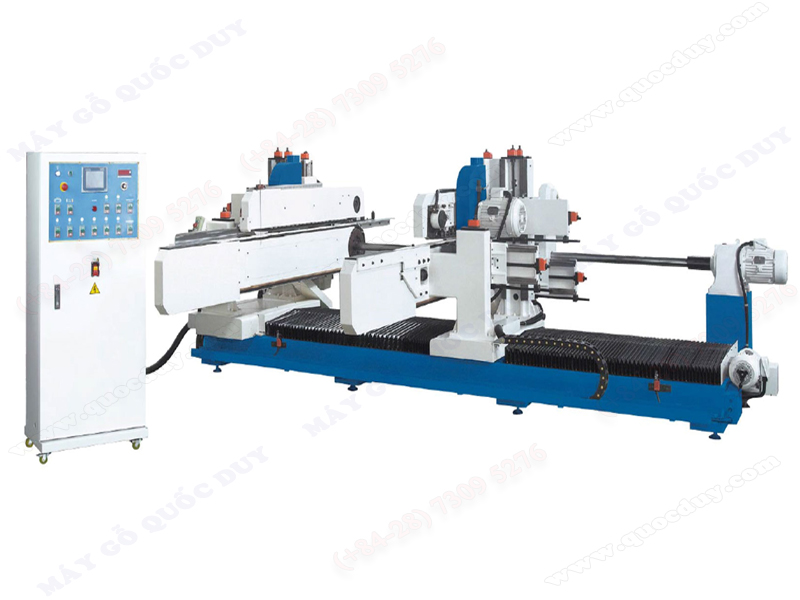

may-cat-phay-2-dau-go
Specification
Max. working width
2600 (3000/3600)mm
Min. working width
210mm
Max. working thickness
120mm
Feed Chaintrack
Motor horse power
2(3/5)hp
Feed speed
5-25m/min
Distance between dogs
400(300/200)mm
Movable Side Shifting System
Motor horse power
1hp
Feed speed
2m/min
Scoring Saw System
Motor horse power
2(3/5/7.5)hp
Spindle speed
3450rpm(60Hz)
Spindle diameter
25.4(30)mm
Sawblade diameter
120-305mm
Main Saw System
Motor horse power
5(7.5/10)hp
Spindle speed
3450rpm(60Hz)
Spindle diameter
25.4(30)mm
Sawblade diameter
205-355mm
Moulding System
Motor horse power
5(7.5/10)hp
Spindle speed
3000/8000rpm
Spindle diameter
40mm
Cutter diameter
180-210mm
Weight
N.W.
4350kg
G.W.
5000kg
Dimensions
Machine size (mm)
4560 x 2360 x 1470mm
Packing size (mm)
4760 x 2280 x 1750mm
