FOUR-PROCESS CNC NESTING MACHINE FOR CABINET MAKING

Model: NEST 4B

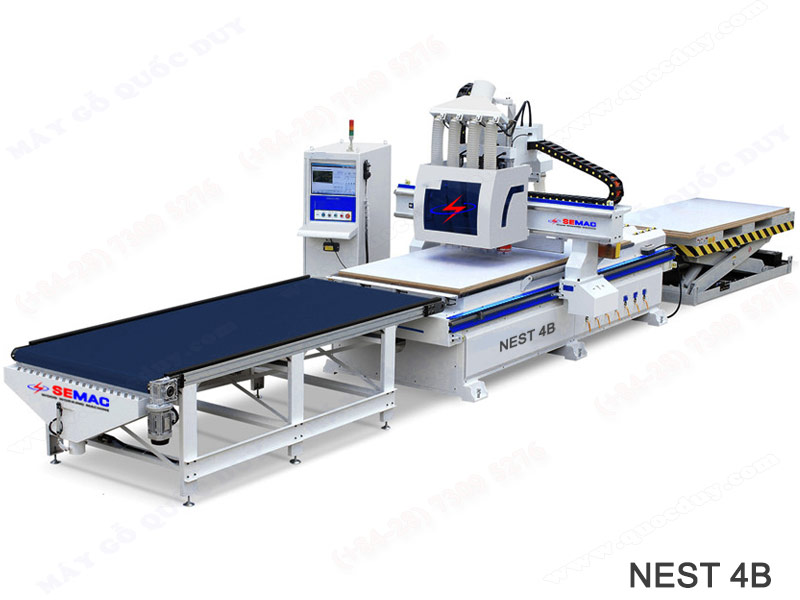

NEST-4B-may-cnc-router-nesting-4-dau-full-line
Features
- Weihong system
- Motor servo: Leadshine
- Porwer : Siemens
- Inverter: Delta – Taiwan
- Automatic loading and unloading work tables improve work efficiency
- Adopting the vacuum adsorption table, it has the advantages of high adsorption force and no running board during processing..
Specifications
Working size
: 1300 x 2500 mm
Axis Z
: 260 mm
Axis speed X
: 60 m/min
Axis speed Y
: 60 m/min
Axis router power
: 6 kw x 1 / 4 kw x 3
Spindle speed
: 18000 rpm
Vacuum
: 7.5 kw
Dust blower
: 150 mm
Air pressure
: 6 kg/m3
