HORIZONTAL MULTIPLE SPINDLE BORING MACHINE
The machine base is manufactured from high quality cast iron Major components and the machine frame are made from high grade cast - iron
- :SS-260/SS-240
- :Taiwan
- :12 month
- :Call
- :
 |  |

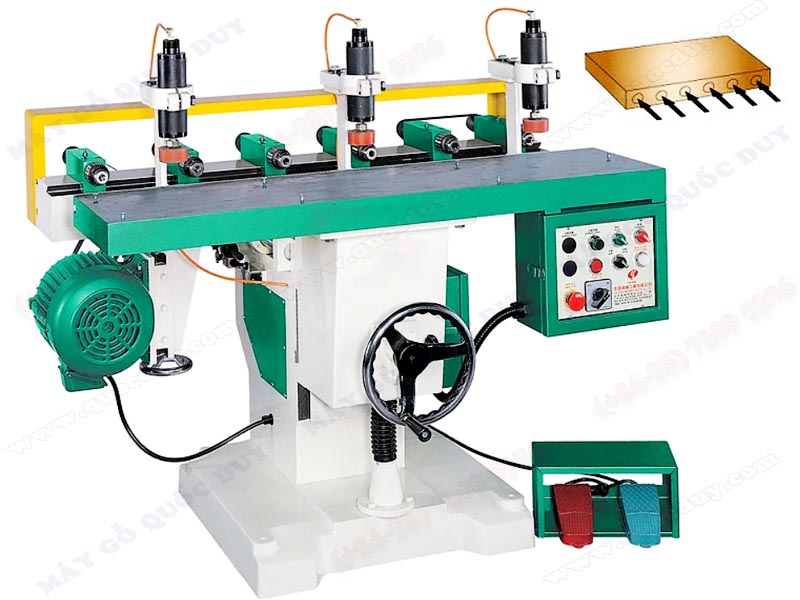

HORIZONTAL MULTIPLE SPINDLE BORING MACHINE
Model: SS-240/SS-260
| Features | ||
|
- The machine base is manufactured from high quality cast iron - Major components and the machine frame are made from high grade cast - iron - Conventional belt tension adjustment - Pneumatic control system - Multiple spindles can be easily adjusted for various boring positions - Easy operation and minimum maintenance |
||
| Specifications | ||
|
MODEL
|
SS-240
|
SS-260
|
|
H-spindle motor
|
2HPx1
|
2HPx2
|
|
H-spindle travel
|
100mm
|
100mm
|
|
Number of H-spindle
|
6
|
10
|
|
Number of idler wheel
|
6
|
10
|
|
Number of hold down clamp
|
3
|
4
|
|
Spindle speed
|
50HZ-3700R.P.M.
|
50HZ-3700R.P.M.
|
|
60HZ-4200R.P.M.
|
60HZ-4200R.P.M.
|
|
|
Hydraulic pump motor
|
2HP
|
2HP
|
|
Max. boring height
|
90mm
|
90mm
|
|
H-spindle basic size
|
1200mm
|
1800mm
|
|
Table size
|
300x1200mm
|
300x1800mm
|
|
Machine size
|
1280x1240x1200mm
|
1880x1240x1200mm
|
|
Packing size
|
1380x1480x1350mm
|
1980x1480x1350mm
|
|
Net weight
|
550kg
|
970kg
|
|
Gross weight
|
650kg
|
1100kg
|
