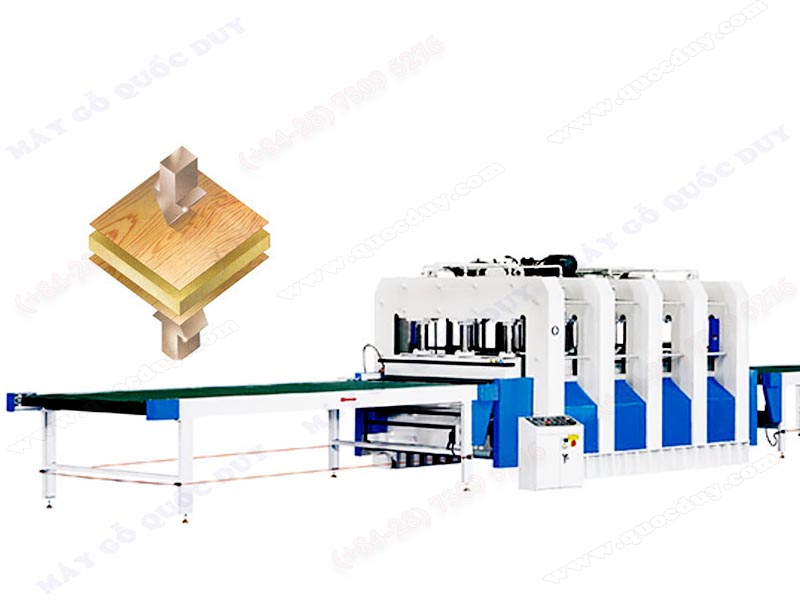

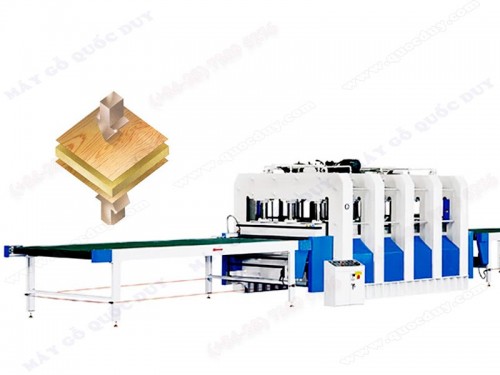

Hot press
- :TA48B-200T/1,TA415B-300T/1
- :China
- :12 month
- :Call
- :
 |  |
HOT PRESSES
Model: TA48B-200T/1,TA415B-300T/1
| Specifications | ||
|
Model
|
TA48B-200T/1
|
TA415B-300T/1
|
|
Working pressure
|
200 T , 6.1 kg/cm2
|
300 T , 5kg /cm2
|
|
Platen dimension
|
1300 x 2500 x 42 mm
|
1300 x 4500 x 45 mm
|
|
Opening of press board
|
250 mm
|
300 mm
|
|
No.of main cylinder
|
8 pcs
|
8 pcs
|
|
Diameter of main cylinder
|
Ø 125 mm
|
Ø 140 mm
|
|
No. of cylinder
|
2 pcs
|
-
|
|
Diameter rotary cylinder
|
Ø 80 mm
|
-
|
|
Heating speed
|
20 – 60 mm/s
|
20 – 60 mm/s
|
|
Pressure of oil
|
20 Mpa
|
24 Mpa
|
|
Feeding speed
|
15m/min
|
15,5 m/min
|
|
Heating way
|
Temp
|
Steam
|
|
Heating power
|
45 kw
|
-
|
|
Max temp
|
1200 C
|
1500C
|
|
Machine dimensions
|
8500 x 1800 x 2150 mm
|
14500 x 2100 x 2800 mm
|
|
Net weight
|
11 ton
|
15 ton
|
|
Installed power
|
10 kw
|
15 kw
|
