HYDRAULIC HOT PRESS MACHINE 120 TON
HYDRAULIC HOT PRESS MACHINE 120 TON
- :BY214X8/12(3)H1RC
- :12 months
- :Semac - Quoc Duy
- :Call
- :
 |  |

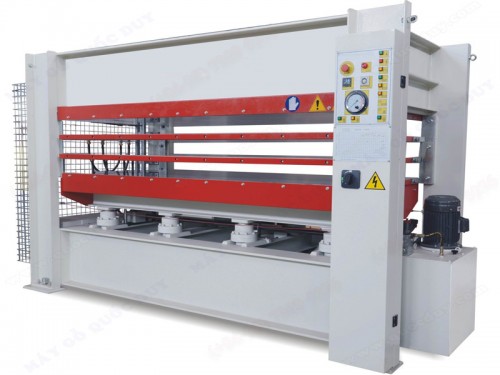

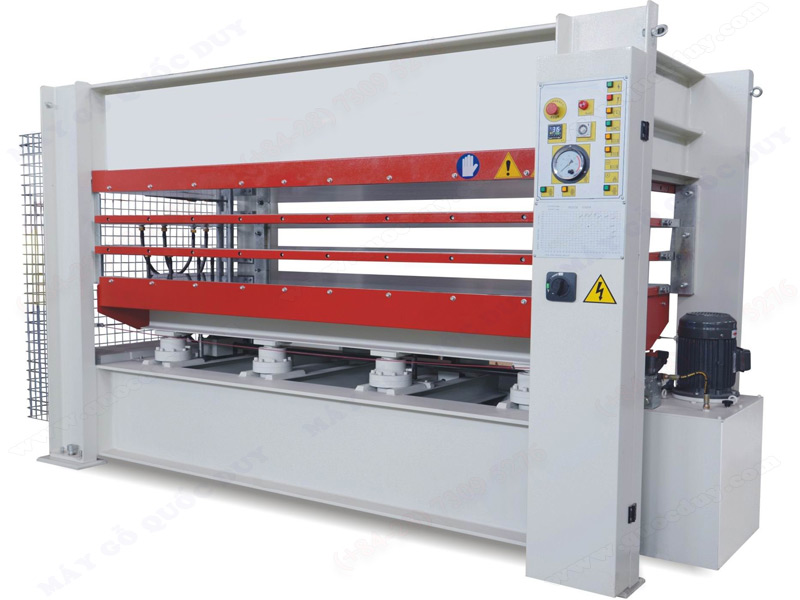

HYDRAULIC HOT PRESS MACHINE 120 TON
Model: BY214X8/12(3)H1RC
| Specifications | |
|
Total pressure
|
: 1200kN
|
|
Working layers
|
: 3
|
|
Unit pressure
|
: 3.1 kgf/cm2
|
|
Platen No.& Size
|
: 4-2500x1300x42mm
|
|
Opening
|
: 120 mm
|
|
Cylinder No.& Diameter
|
: 8 - φ85 mm
|
|
Heating way
|
: Electric Heated with Thermal Oil
|
|
Installed power
|
: 52.75 kw
|
|
Closed speed
|
: 30 mm/s
|
