HYDRAULIC HOT PRESSES
HYDRAULIC HOT PRESSES

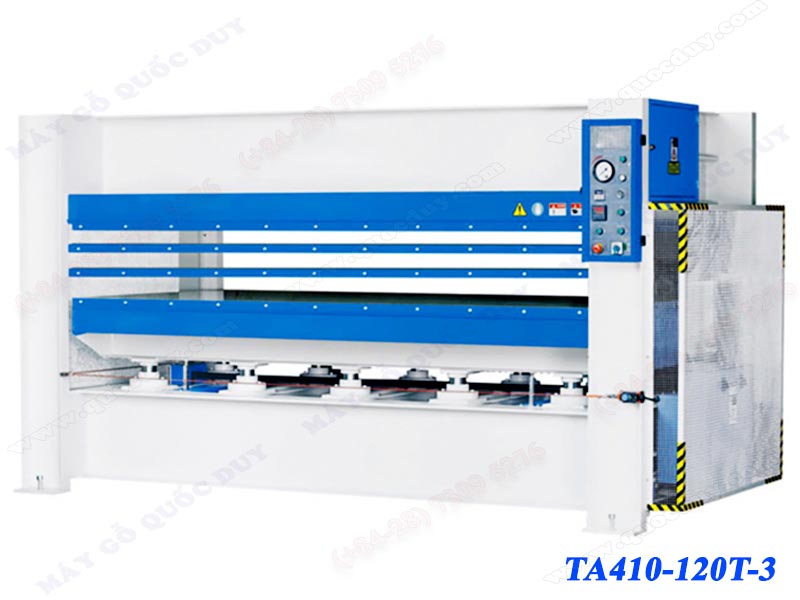

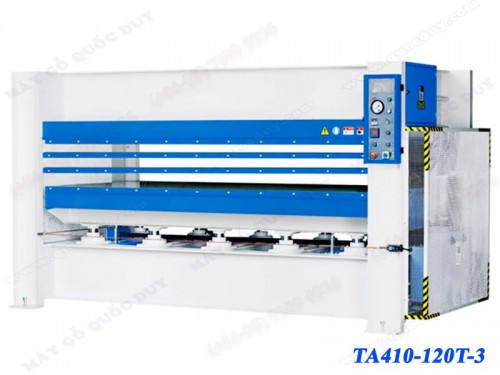

Model: TA48-100T/3, TA410-120T/3, TA48-180T/6
| Specifications | |||
|
Model
|
TA48-100T/3
|
TA410-120T/3
|
TA48-180T/6
|
|
Press board dimensions
|
2500 x 1300 mm
|
3000 x 1300 mm
|
2500 x 1300 mm
|
|
Pressure of worktable
|
100 ton ( 3.1kg /cm2)
|
120 ton , 2.5 kg /cm2
|
180 ton (5,5/cm2)
|
|
Opening of press board
|
100 mm
|
100 mm
|
90 mm
|
|
Quantity of oil-cylinder
|
6 pcs
|
8 pcs
|
8 pcs
|
|
Diameter of oil-cylinder
|
Ø 100 mm
|
Ø 100 mm
|
Ø 120 mm
|
|
Heating power
|
45 kw
|
54 kw
|
90 kw
|
|
Installed power
|
5.5 kw
|
5.5 kw
|
5,5 kw
|
|
Machine dimensions
|
3600 x 1650 x 2150 mm
|
4100 x 1650 x 2200 mm
|
4300 x 1350x 2530 mm
|
|
Net weight
|
8500 kg
|
9500 kg
|
14000 kg
|
