LINEAR EDGE SANDING MACHINE
- :SM-S2W2
- :SEMAC - Quoc Duy
- :12 Months
- :Call
- :
 |  |

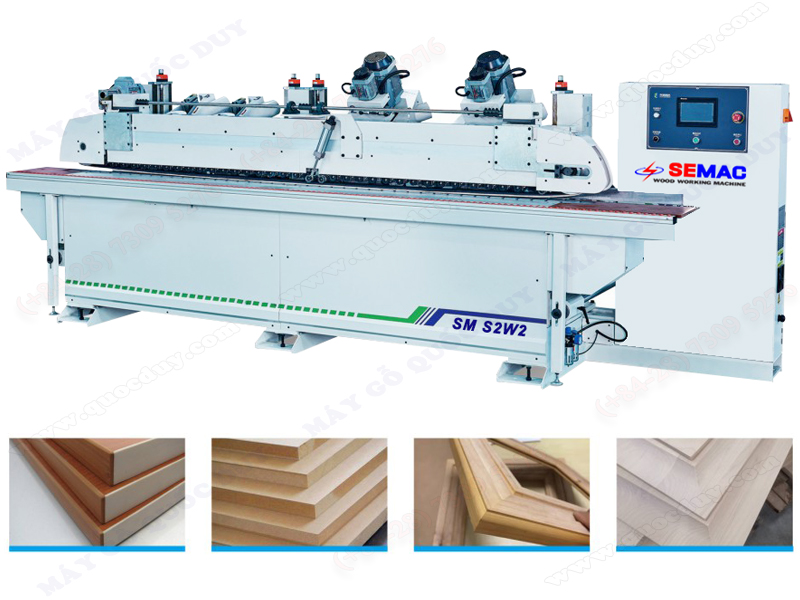

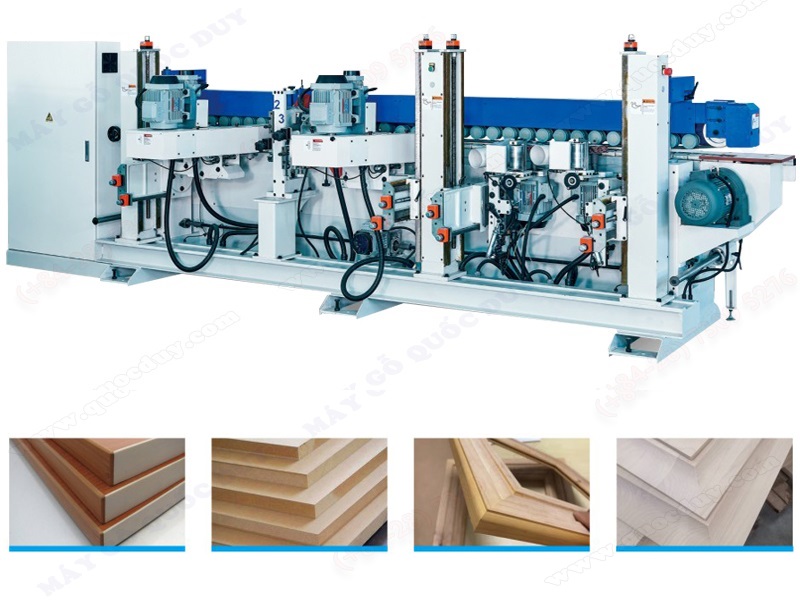

LINEAR EDGE SANDING MACHINE
Model: SM-S2W2
|
Feature
|
|
|
- Scope of application: Suitable for chamfering and sanding of the edge of cabinets, furniture, wooden doors and other plates. Under the premise of ensuring that the head and tail of the workpiece are not damaged by sand, the primer sanding with tearing paint on the edge of various sheet processing is solved.
- Features of the equipment: belt type pressure material, spring load, reliable pressure, no damage to the workpiece; sanding head can adjust the angle; sand frame has up and down oscillation adjustment function to ensure good smoothness and smoothness of the sanding surface.
|
|
|
Specification
|
|
|
Working width
|
100 - 1800 mm
|
|
Max. workpiece thickness
|
80 mm
|
|
Working table height
|
850 mm
|
|
Feed speed
|
0-22 m/min
|
|
Total power
|
9.08 kw
|
|
Machine size
|
1800 kg
|
|
Net weight
|
4390 x 1500 x 1500 mm
|
