MACHINE COATING ROLLER

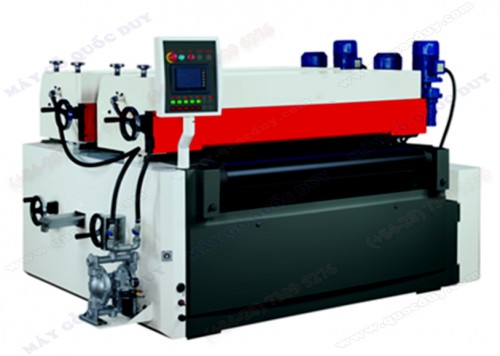

MACHINE COATING ROLLER 2 AXIS
FEATURES
|
|||
All defects such coarse grain and pores can be filled up to achieve extremely fine finish surface. ‧ The machine is suitable for UV paint coating.With the counter-clockwise running of roller, the paint surplus on the workpiece can be removed for reuse without waste of paint. ‧ Each roller is independtly controlled by a frequency inverter. The filler roller speed and pressure are adjustable, ensuring perfect coating on workpiece. ‧ The application head is supported by the exclusively designed dovetailed support system. ‧ Workpiece is fed through a conveyor belt that features automatic positioning. ‧ Cleaning scrapers can be conveyor controlled for approaching and separation from outside without need raise the grid-guard. ‧ Coating thickness is adjusted by means of smoothing roller that ensures high coating quality. ‧ The powered elevation design combined with limit switch provide over-travel protection. In case over-travel occurs, power shuts off automatically. |
|||
SPECIFICATION | |||
Model
|
TS-W2T-T
|
TS-W3T-T
|
TS-W4T-T
|
Max. with of coating
|
610 mm
|
920 mm
|
1290 mm
|
Min. length of coating
|
2- 80 mm
|
||
Workpiece
|
300 mm
|
||
Conveyor belt size
|
10 – 20m/phút
|
Thiết kế theo yêu cầu
|
|
Coating rollers sizes
|
Ø205x 780 mm
|
Ø205x1100 mm
|
Ø250x1450mm
|
Smoothing rollers sizes
|
Ø150x 780 mm
|
Ø150x1100 mm
|
Ø175x1450mm
|
Coating rollers motor
|
0.75 kw
|
0.75 kw
|
1.5 kw
|
Smoothing rollers motor
|
0.37 kw
|
0.37 kw
|
0.75 kw
|
Conveyor belt motor
|
0.18 kw
|
0.18 kw
|
0.18 kw
|
Pump
|
1/2”
|
1/2”
|
3/4”
|
Machine size
|
1820x1770x1440 mm
|
1820x2100x1440 mm
|
1820x2385x1440 mm
|
