MULTI-FUNCTION TRIMMING MACHINE
MULTI-FUNCTION TRIMMING MACHINE
ö EB-3
+ 0.73 HP/18,000 RPM high frequancy motors for top, bottom and R-shape trimmings
+ Upper motor can be moved forward for tilted panel trimming operations
+ Available cutters to be used from 0.3 mm up to 5.0 mm
ö EB-4
+ Specially designed for profile trimming job on cabinet inserted board
+ Trimming cutter moves in 3 ways and equips with full hydraulic speed stabilizer, that guarantees extremely smooth banded surface

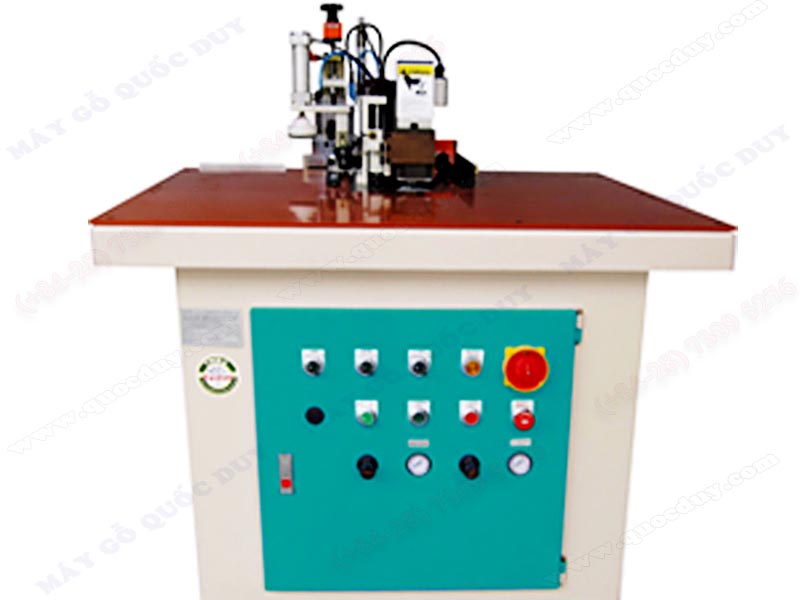

EB-34C
SPECIFICATIONS
|
EB-3
|
EB-3C
|
EB-4
|
Workpiece length
|
160 mm – unlimited
|
85 mm – unlimited
|
|
Width of workpiece
|
10 – 70 mm
|
6 – 55 mm
|
8 – 55 mm
|
Thickness of workpiece
|
50 mm – unlimited
|
85 mm – unlimited
|
|
Max. softforming depth
|
|
40 mm
|
|
Min. inner curve
|
R 25 mm
|
|
9.5 mm
|
Edge thickness
|
0.3 – 5 mm
|
||
Cutter size
|
Þ 60 x 20 x 24 mm
|
Þ 100 x 14 x 2.6 mm
|
Þ 6 x 19 mm
|
Motor
|
550w/18,000 rpm
|
620w/12,000 rpm
|
500w/27,000 rpm
|
Machine size
|
1270 x 1110 x 1280 mm
|
||
Packing size
|
1320 x 1150 x 1420 mm
|
||
N.W/G.W
|
350/450 kgs
|
