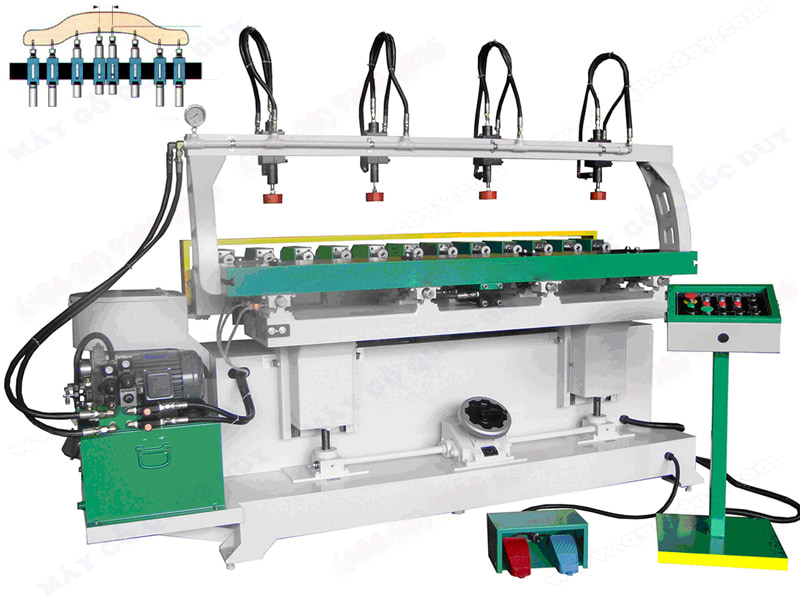

MULTIPLE SPINDLE OSCILLATION MORTISER
- :YC-612
- :Taiwan
- :12 months
- :Call
- :
 |  |
MULTIPLE SPINDLE OSCILLATION MORTISER
Model: YC-612
| Specifications | |
|
Max mortise with
|
: 65 mm
|
|
Max.mortise depth
|
: 60mm
|
|
Table size
|
: 320 x 1850 mm
|
|
Number of spindle
|
: 12
|
|
Spindle speed
|
: 10.000 RPM
|
|
Numbers of hydraulic cylinder
|
: 4
|
|
Clamping cylinder stroke
|
: 100 mm
|
|
Spindle motor
|
: 7.5 HP x 2
|
|
Hydraulic pump motor
|
: 2 HP
|
|
Machine size
|
: 2490x900x1400 mm
|
|
Packing size
|
: 2600x1000x1600 mm
|
|
Net weight
|
: 1200 kgs
|
|
Gross weight
|
: 1280 kgs
|
| Video | |
