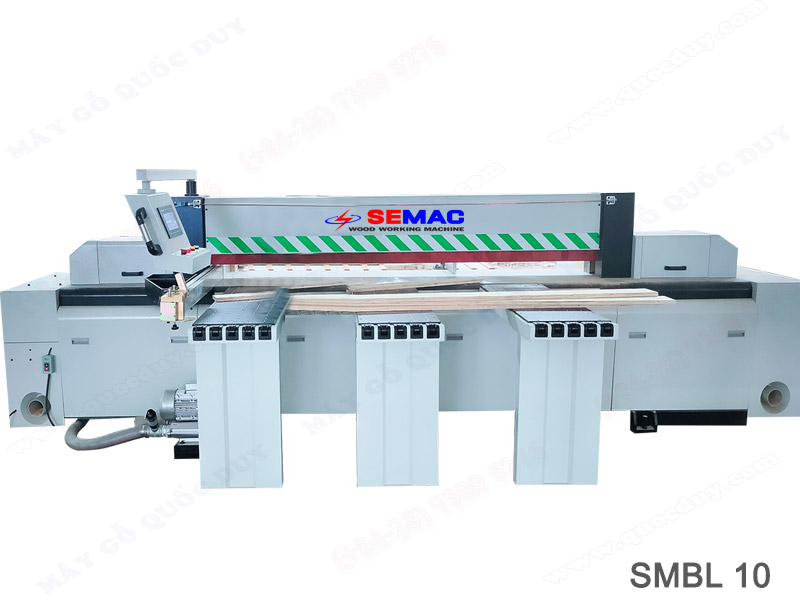

Model: SMBL 10
|
Features
|
|
|
Equipped PLC screen (Delta) High accuracy up to ±0.15mm. Safe protection: use infrared equipment, the saw will stop once there is other things 10cm between the saw blade. Electric components: use Schneider and Omron. High efficiency, the production capacity is 3 times than a sliding table saw Easy operation, normal worker can operate the machine, no need professional person. |
|
|
Application
|
|
|
This cnc panel saw can be used on various of different materials: MDF, particalboard, plywood, solid wood, PVC, Acrylic, etc |
|
|
Specifications
|
|
|
Max. cutting length
|
: 2600 mm
|
|
Max. cutting thickness
|
: 75 mm
|
|
Main saw power
|
: 9 Kw
|
|
Servo motor
|
: 1.5 Kw
|
|
Dia. Main saw blade
|
: 355 mm
|
|
Dia. Main saw spindel
|
: 30 mm
|
|
Rotation speed of main saw blade
|
: 5600 r/min
|
|
Dia. Scoring saw blade
|
: 180 mm
|
|
Dia. Scoring saw shaft
|
: 25.4 mm
|
|
Rotation speed of scoring saw shaft
|
: 8500 r/min
|
|
Voltage
|
: 380V/50Hz/ 3 phase
|
|
Saw carriage forward speed
|
: 0 – 45 m/min
|
|
Saw carriage backward speed
|
: 0 – 60 m/min
|
|
Net Weight
|
: 3200 kg
|
|
Machine size
|
: 5200 x 3550 x 1750 mm
|
